Highly Diverse and Time Proven: DIN 41612 / IEC 60603-2 Connector

The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.

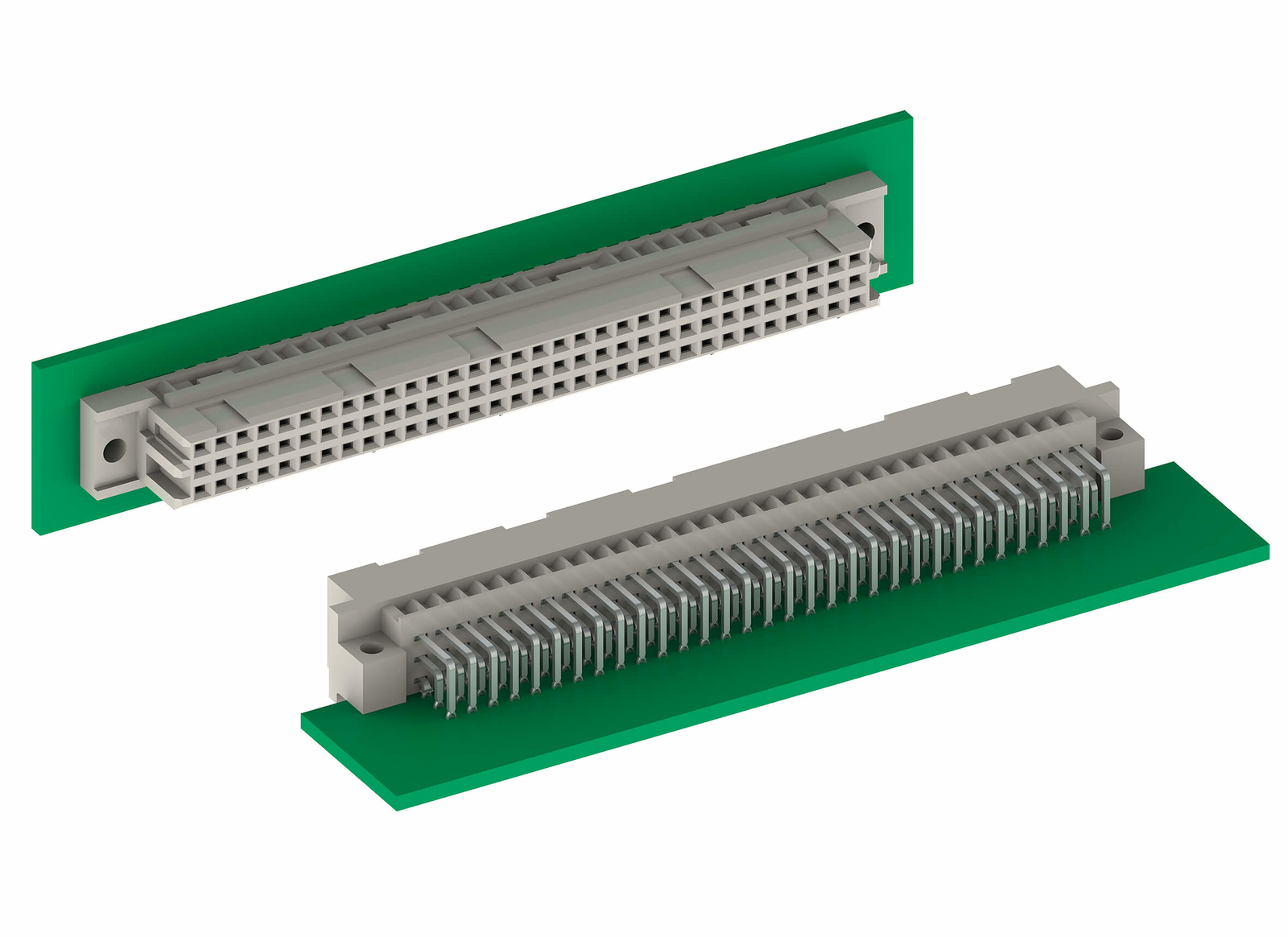

DIN Anwendung C ML C FL

Features

  • Various termination technologies possible
  • Leading and lagging contacts
  • Pre-centering
  • Variety of termination lengths
  • A range of accessories, such as shrouds, board locks, coding keys
  • Quick lock switch fastener for daisy chaining
  • Board locks and codes provide developers and users with additional safety and a wide range of possible applications.

Applications

  • Backplane daughter card, 19-inch technology (VME)
  • Board-to-board, parallel, or stacked
  • High-power
Filter
Female straight

DIN 41612 Female straight, type B Part No. 102-40024

DIN B FL Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-40024TH

DIN B FL Foto
Termination length 2.5 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40024TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-40026

DIN B FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40026 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-40044

DIN B FL Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-40074

DIN B FL Foto
Termination length 5.5 mm, 64 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40074 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-63024-xx

DIN B FL Foto
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-63024-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-65025-xx

DIN B FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-65025-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B Part No. 102-65026-xx

DIN B FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-65026-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

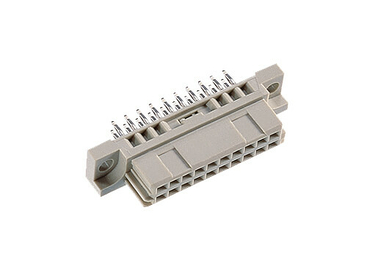

DIN 41612 Female straight, type B/3 Part No. 102-68014-xx

DIN B3 FL Foto
Termination length 3.2 mm / 4.6 mm, 20 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-68014-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

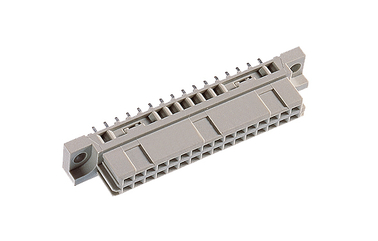

DIN 41612 Female straight, type B/2 Part No. 102-69004-xx

DIN B2 FL Foto NEU
Termination length 3.2 mm / 4.6 mm, 16 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-69004-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-69064-xx

DIN B2 FL Foto NEU
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-69064-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-78016-xx

DIN B3 FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 20 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-78016-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologypress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-78116-xx

DIN B3 FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 20 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-78116-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologypress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-79006-xx

DIN B2 FL Foto NEU
Termination length 13 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79006-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-79066-xx

DIN B2 FL Foto NEU
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79066-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-79106-xx

DIN B2 FL Foto NEU
Termination length 17 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79106-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-79166-xx

DIN B2 FL Foto NEU
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79166-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80004

DIN B3 FL Foto
Termination length 2.5 mm, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80004TH

DIN B3 FL Foto
Termination length 2.5 mm, 10 contacts, THTR, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80004TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80005

DIN B3 FL Foto
Termination length 4 mm, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80005TH

DIN B3 FL Foto
Termination length 4 mm, THTR, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80005TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80006

DIN B3 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 9 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80025

DIN B3 FL Foto
Termination length 5.5 mm, 10 contacts, hand solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 9 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80064

DIN B3 FL Foto
Termination length 2.5 mm, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80064TH

DIN B3 FL Foto
Termination length 2.5 mm, 20 contacts, THTR, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80064TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80065

DIN B3 FL Foto
Termination length 4 mm, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80065TH

DIN B3 FL Foto
Termination length 4 mm, 20 contacts, THTR, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80065TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80066

DIN B3 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/3 Part No. 102-80075

DIN B3 FL Foto
Termination length 5.5 mm, 20 contacts, hand solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90004

DIN B2 FL Foto NEU
Termination length 2.5 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90004TH

DIN B2 FL Foto NEU
Termination length 2.5 mm, 16 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90004TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90005

DIN B2 FL Foto NEU
Termination length 4 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90005TH

DIN B2 FL Foto NEU
Termination length 4 mm, 16 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90005TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90006

DIN B2 FL Foto NEU
Termination length 13 mm, termination side Sn plated for wire wrap, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90025

DIN B2 FL Foto NEU
Termination length 5.5 mm, 16 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90064

DIN B2 FL Foto NEU
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90064TH

DIN B2 FL Foto NEU
Termination length 2.5 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90064TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90065

DIN B2 FL Foto NEU
Termination length 4 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90065TH

DIN B2 FL Foto NEU
Termination length 4 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90065TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90066

DIN B2 FL Foto NEU
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type B/2 Part No. 102-90075

DIN B2 FL Foto NEU
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40014

DIN C FL Einpress Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40016

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40016 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40044

DIN C FL Einpress Foto
Termination length 2.5 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40046

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40046 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40075

DIN C FL Einpress Foto
Termination length 5.5/11 mm, 96 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-40115

DIN C FL Einpress Foto
Termination length 5.5 mm, 64 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40115 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-60014-xx

DIN C FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-60014-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-60044-xx

DIN C FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 48 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-60044-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-65015-xx

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65015-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-65016-xx

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65016-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-65045-xx

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 48 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65045-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C Part No. 104-65046-xx

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 48 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65046-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-69004-xx

DIN C2 FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 16 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-69004-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-79006-xx

DIN C2 FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-79006-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-79106-xx

DIN C2 FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-79106-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/3 Part No. 104-80035

DIN C3 FL Lot Foto
Termination length 5.5/11 mm, 20 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 104-80035 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/3 Part No. 104-80075

DIN C3 FL Lot Foto
Termination length 5.5/11 mm, 30 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 104-80075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-90004

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-90006

DIN C2 FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-90025

DIN C2 FL Einpress Foto
Termination length 5.5 mm, 16 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-90035

DIN C2 FL Einpress Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90035 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type C/2 Part No. 104-90075

DIN C2 FL Einpress Foto
Termination length 5.5/11 mm, 48 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current2.6 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-40064

DIN D FL Einpress Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-40065

DIN D FL Einpress Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-40066

DIN D FL Einpress Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-40075

DIN D FL Einpress Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-40084

DIN D FL Einpress Foto
Termination length 2.5 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-60064

DIN D FL Einpress Foto
Termination length 6 mm, termination 1 x 1, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-60065

DIN D FL Einpress Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type D Part No. 106-60084

DIN D FL Einpress Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40014

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40015

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40024

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40025

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40034

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40034 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40036

DIN E FL Lot Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40036 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40044

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40046

DIN E FL Lot Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40046 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40064

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40065

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40074

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40074 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40076

DIN E FL Lot Foto
Termination length 5.5/11 mm, 48 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40076 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-40084

DIN E FL Lot Foto
Termination length 2.5 mm, termination 0.6 x 0.6, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60015

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60025

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60044

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60054

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60054 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60065

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type E Part No. 108-60084

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-60084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40004

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination Ø 0.7 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40005

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination Ø 0.7 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40014

DIN F FL Einpress Foto
Termination length 22 mm, Termination 1x1 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40015

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination 1x1 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40024

DIN F FL Einpress Foto
Termination length 22 mm, Termination 1x1 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40025

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination 1x1 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40036

DIN F FL Einpress Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40036 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40046

DIN F FL Einpress Foto
Termination length 5.5 mm / 10.9 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40046 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm / 10.9 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40064

DIN F FL Einpress Foto
Termination length 22 mm, Termination 1x1 mm, termination side Sn plated for wire wrap, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40065

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination 1x1 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40076

DIN F FL Einpress Foto
Termination length 5.5 mm / 10.9 mm, 48 contacts, hand solder, performance level 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40076 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length5.5 mm / 10.9 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-40084

DIN F FL Einpress Foto
Termination length 4.5 mm, Termination Ø 0.7 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-40084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.5 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-40504

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-40504 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-40505

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-40505 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-40584

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-40584 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60014

DIN F FL Einpress Foto
Termination length 22 mm, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60015

DIN F FL Einpress Foto
Termination length 6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length6 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60024

DIN F FL Einpress Foto
Termination length 22 mm, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60025

DIN F FL Einpress Foto
Termination length 6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length6 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60064

DIN F FL Einpress Foto
Termination length 22 mm, termination side Sn plated for wire wrap, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length22 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F Part No. 110-60065

DIN F FL Einpress Foto
Termination length 6 mm, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F Part No. 110-60065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length6 mm
Board-to-Board Distance34.1 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-61004

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-61004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-61005

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-61005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-61084

DIN F flach FL Einpress Foto
Termination length 4.6 mm, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-61084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-66015

DIN F flach FL Einpress Foto
Termination length 12.2 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-66015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length12.2 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-66025

DIN F flach FL Einpress Foto
Termination length 12.2 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-66025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length12.2 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 50 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type F low profile Part No. 110-66065

DIN F flach FL Einpress Foto
Termination length 12.2 mm, with plug-in zone in performance level 2, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type F low profile Part No. 110-66065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length12.2 mm
Board-to-Board Distance24.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 75 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-40064

DIN G FL Foto
Termination length 4.5 mm, 64 contacts, solder, performance level 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-40065

DIN G FL Foto
Termination length 22 mm, termination side Sn plated for wire wrap, 64 contacts, solder, performance level 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length22 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-40066

DIN G FL Foto
Termination length 5.5 mm / 10.9 mm, 64 contacts, hand solder, performance level 2
Perpendicular
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-40066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length5.5 mm / 10.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-40084

DIN G FL Foto
Termination length 4.5 mm, 64 contacts, solder, performance level 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-40084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G low profile Part No. 112-40584

DIN G flach FL Einpress Foto
Termination length 4.6 mm, 64 contacts, solder, performance level 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type G low profile Part No. 112-40584 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length4.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-60064

DIN G FL Foto
Termination length 6 mm, 64 contacts, Press-fit, performance level 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-60064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
Insulation Resistance>106
Test Voltage1550 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

DIN 41612 Female straight, type G Part No. 112-60065

DIN G FL Foto
Termination length 22 mm, termination side Sn plated for wire wrap, 64 contacts, Press-fit, performance level 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type G Part No. 112-60065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length22 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 x 3.81 mm
Mating Force< 100 N
Separating Force per Pin>0.2 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepagecr: ≥ 3.0 mm, cl: ≥ 1.6 mm
