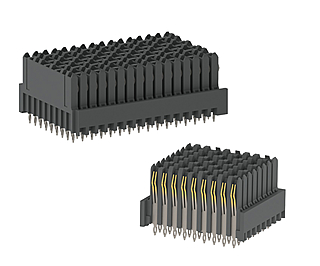

Velox High-Speed Backplane Connectors

Modular Backplane Connector System Velox® is a modular connector system for highspeed backplane applications. It was specifically designed for markets with high performance requirements. The Velox® product series meets the demanding requirements of VITA 46 systems. Four different types are available, and customized assembly is possible. This gives developers more flexibility when designing circuit board layouts. In addition, a 1.27-µm gold surface ensures the durability of the system.

Features

10 Gbps
Robust design
Tested in accordance with VITA 46
High durability, 200 mating cycles
“Heavy gold” plating
Internal contacts
Modular connector system
Customized contact assembly

Applications

Military
Aerospace industry
Systems for high loads
Telecommunications/data transfer rate

Velox: Overview

Facts at a glance Applications Velox Products Features VITA 46 Specification Developer view FAQ

16-left

Velox 16-left Part No. 308-52100-41

plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 16-left Part No. 308-52100-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox 16-left Part No. 308-52100-42

plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 16-left Part No. 308-52100-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

center

Velox center Part No. 308-50100-41

plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50100-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox center Part No. 308-50100-42

plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50100-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Velox center Part No. 308-50101-41

plating Press-fit Zone: SnPb, custom loaded (135 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50101-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	135
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox center Part No. 308-50101-42

plating Press-fit Zone: Sn (RoHS compliant), custom loaded (135 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50101-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	135
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Velox center Part No. 308-50102-41

plating Press-fit Zone: SnPb, custom loaded (71 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50102-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	71
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox center Part No. 308-50102-42

plating Press-fit Zone: Sn (RoHS compliant), custom loaded (71 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50102-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	71
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Velox center Part No. 308-50103-41

plating Press-fit Zone: SnPb, custom loaded (80 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50103-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	80
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox center Part No. 308-50103-42

plating Press-fit Zone: Sn (RoHS compliant), custom loaded (80 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox center Part No. 308-50103-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	80
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

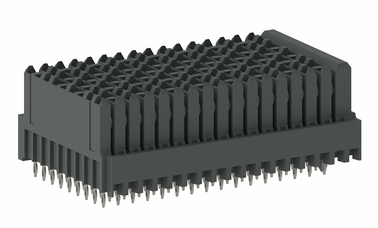

16-right

Velox 16-right Part No. 308-51100-41

plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 16-right Part No. 308-51100-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

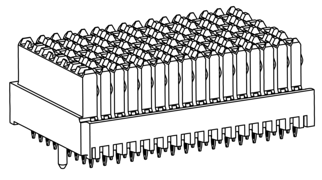

Velox 16-right Part No. 308-51100-42

plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 16-right Part No. 308-51100-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	144
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

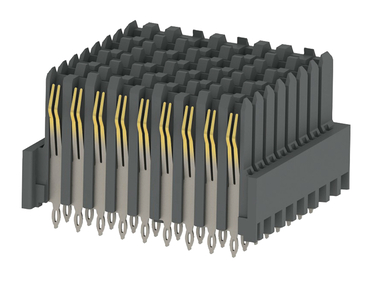

8-left

Velox 8-left Part No. 308-52200-41

plating Press-fit Zone: SnPb, fully loaded (72 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 8-left Part No. 308-52200-41 - Technical data

Basics

Specification	VITA 46
No. of Contacts	72
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314

Velox 8-left Part No. 308-52200-42

plating Press-fit Zone: Sn (RoHS compliant), fully loaded (72 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s

Perpendicular

Press-fit

High Speed

Rugged

show more product details

Velox 8-left Part No. 308-52200-42 - Technical data

Basics

Specification	VITA 46
No. of Contacts	72
Termination Technology	Press-fit
Termination Length	1.62 mm
Operating Temperature Range	-55°C to +105°C

Material

Insulator Material	LCP, UL 94 V-0
CTI value IEC 60112	175
Contact Material	Phosphor Bronze
Plating	1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch	1.8 mm
Mating Force per Pin	max. 0.75 N
Separating Force per Pin	min. 0.15 N
Durability	200 mating cycles

Electrical

Operational Current	1.0 A (<30°C)
Operational Voltage	50 VAC Peak or DC
Contact Resistance	max. 80 mΩ
Clearance and Creepage	≥ 0.7 mm
Insulation Resistance	min. 1000 MΩ
Test Voltage	500 V (AC/DC)
Data Transfer Rate	10 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Features

The Velox®connectors feature a robust design including a gold surface of 1.27 μm (50 μin) thickness. The contacts are on the inside, giving them additional protection. All these features contribute to a very high durability of at least 200 mating cycles. For this reason, Velox® is particularly suitable for highspeed backplane applications with a data transfer rates of 10 Gbps. The high resistance of the connectors has already been proven in tests carried out in accordance with the VITA 46 standard.

The VITA 46 Specification:

The VITA 46 specification (or VPX) describes a new highspeed connector system. It transfers Gigabit Ethernet, PCI Express, Serial RapidIO, and InfiniBand, among others. The well-known 6HE and 3HE European PCB form factors from VMEbus are supported in order to ensure maximum compatibility. This also makes hybrid systems a possibility. The VITA 46 standard was developed by VITA mainly for computer systems that need to be able to withstand high stresses, for example, military applications.

Four different designs can be combined with each other in a modular way. Velox® connectors are very flexible due to the different numbers of contacts. This feature is underlined by the possibility to equip the variants individually.

Developer view:

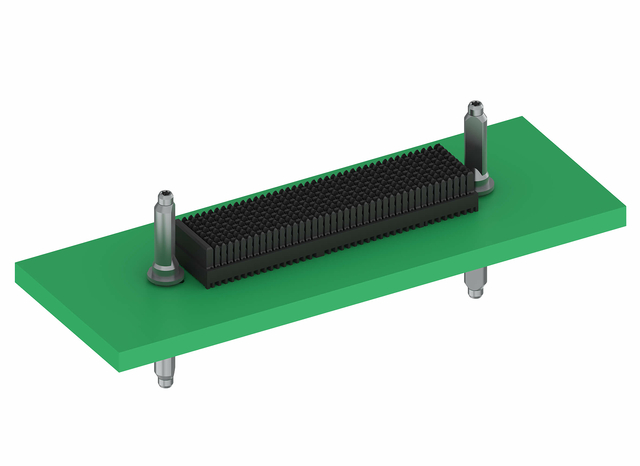

The Velox® connector system was developed by ept specifically for VITA 46 systems (also called VPX systems). Velox® comprises four different types of connectors with a modular layout. Customers can specify the contact counts themselves. Fully pre-assembled connectors are available with 72 or 144 contacts, or the contact count can be specified individually. This gives developers added flexibility when designing their circuit boards. The system is specifically designed for applications with high requirements on performance. The system is extremely resilient thanks to its gold plating and the contacts being located inside of the housing.

Velox Highspeed Backplane

Features

Applications

Velox: Overview

Velox 16-left Part No. 308-52100-41

Velox 16-left Part No. 308-52100-42

Velox center Part No. 308-50100-41

Velox center Part No. 308-50100-42

Velox center Part No. 308-50101-41

Velox center Part No. 308-50101-42

Velox center Part No. 308-50102-41

Velox center Part No. 308-50102-42

Velox center Part No. 308-50103-41

Velox center Part No. 308-50103-42

Velox 16-right Part No. 308-51100-41

Velox 16-right Part No. 308-51100-42

Velox 8-left Part No. 308-52200-41

Velox 8-left Part No. 308-52200-42

Kein passendes Produkt gefunden - Produkt jetzt anfragen:

Features

The VITA 46 Specification:

Developer view:

FAQ:

You reserved the following product for your request:

The VITA 46 Specification:
