Power Terminals – Power Supply on the Circuit Board

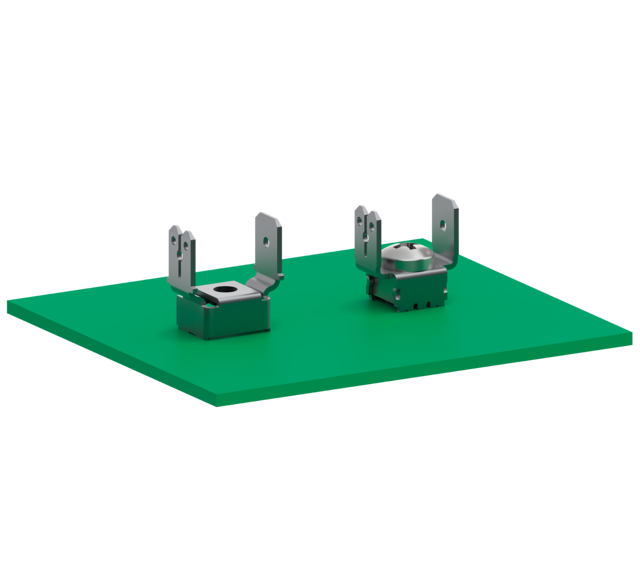

Power Supply Connections Based on Press-Fit Technology ept Power Terminals are specially designed to provide power supply connections to circuit boards. The cable is connected using a cable lug that is screwed in place or via a tab terminal (Faston).
PowerTerminals 5 08x10 16 Gewinde M4 Foto

Features

  • Easy connection of power cables
  • Individual variants such as angled or offset connectors are possible
  • Easy processing via press-in
  • Accessories: M4 or M5 screws

Applications

  • Power supply by screw connection or Faston contact
  • Backplane systems for power supply
Pitch 5.08 x 10.16 mm

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33008

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33008 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33009

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33009 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33048

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33048 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33049

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33049 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33248

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33248 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33249

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33249 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32004

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32004 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32006

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32006 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32044

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32044 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32046

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32046 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32244

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32244 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32246

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32246 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Pitch 5.08 x 7.62 mm

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22015

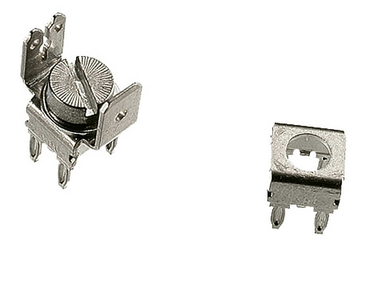

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22015 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22020

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22020 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22715/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22715/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22720/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22720/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60045

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60045 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60050

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60050 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60645/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60645/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60650/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60650/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Accessories

Power Terminals Lock nut Part No. 910-20015

thread  M4
Power Terminals Lock nut Part No. 910-20015 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Lock nut Part No. 910-20020

thread  M5
Power Terminals Lock nut Part No. 910-20020 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Socket cap screw DIN 84, M4 Part No. 910-20145

thread  M4
Power Terminals Socket cap screw DIN 84, M4 Part No. 910-20145 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Philips screw Part No. 910-20146

thread  M4
Power Terminals Philips screw Part No. 910-20146 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Socket cap screw DIN 84, M5 Part No. 910-20150

thread  M5
Power Terminals Socket cap screw DIN 84, M5 Part No. 910-20150 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Washer Part No. 910-20320

thread  M4
Power Terminals Washer Part No. 910-20320 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant

Power Terminals Washer Part No. 910-20330

thread  M5
Power Terminals Washer Part No. 910-20330 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant

Features

Powerterminal Board
ept Power Terminals impress customers thanks to their ability to conveniently connect power cables and easy processing by press-fitting. The Power Terminals are available in individual variants with an angled or offset connection.
Powerterminal
Power Terminal

Details im Überblick

Anschluss Faston-Kontakt
Anschluss Schraube
Einpresszone Tcom press®
