hm 2.0 – Hard Metric Connectors

High Contact Density The hm 2.0 series of hard metric connectors was developed in accordance with the international IEC 61076-4-101 standard. These shielded connectors have a pitch of 2 mm and are suitable for applications that require high contact density and reliability. The connector system is rather popular in the area of backplane. Standardization ensures that the connectors are compatible with products from different manufacturers.

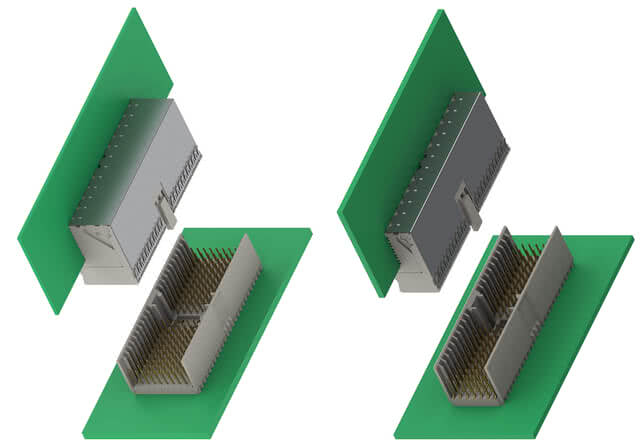

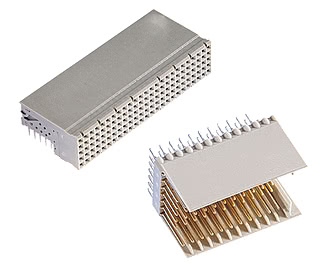

hm Titelbild.jpg

Features

  • Wide selection of types
  • Modular connectors with a pitch of 2 mm
  • Five or eight signal rows
  • Twelve different pin lengths
  • Customized assembly layout as an option
  • Available with or without shielding
  • Supports data transfer rates of up to 3.125 Gbps
  • Robust design

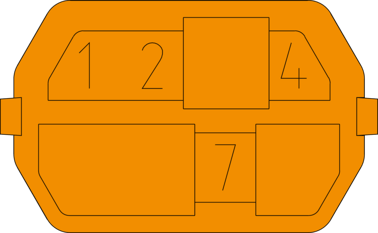

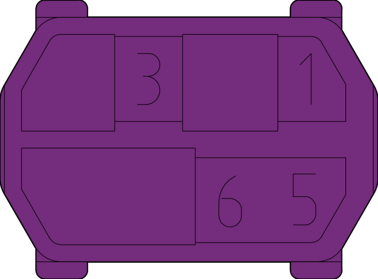

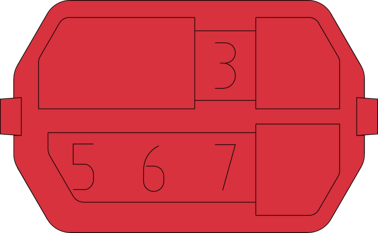

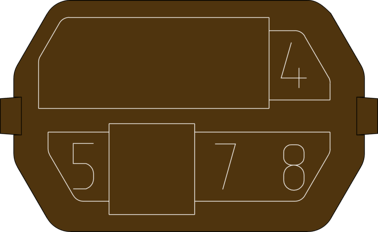

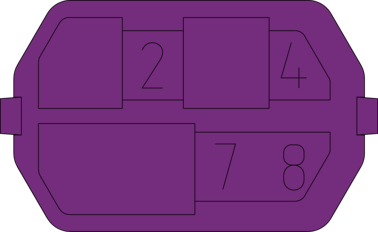

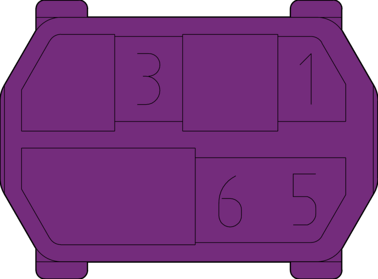

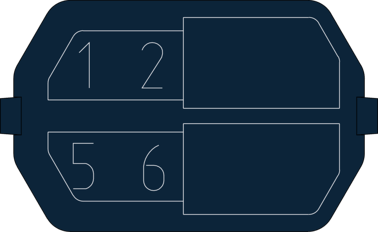

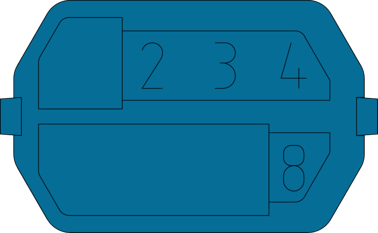

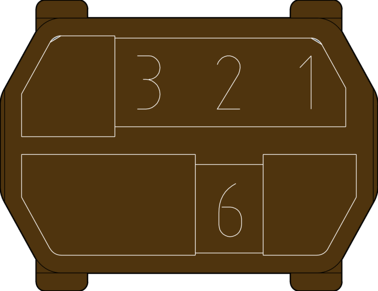

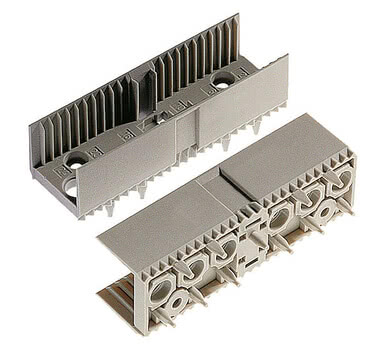

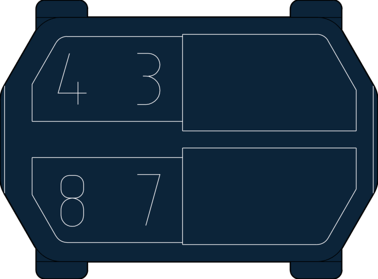

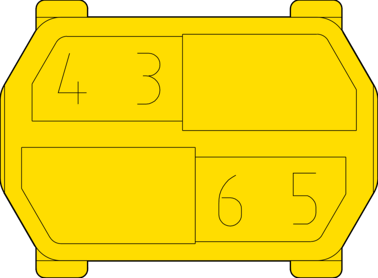

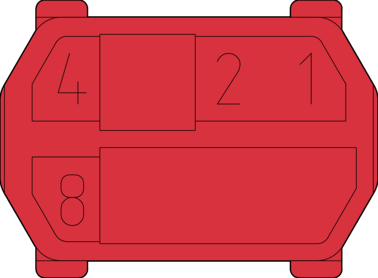

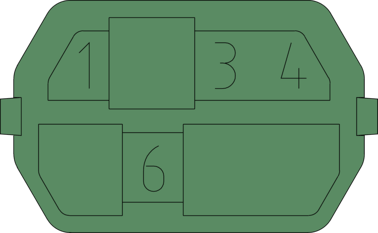

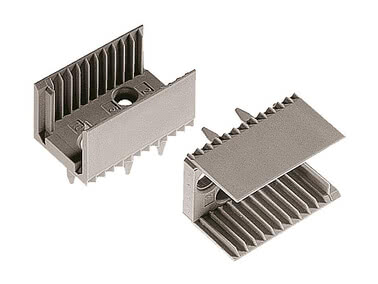

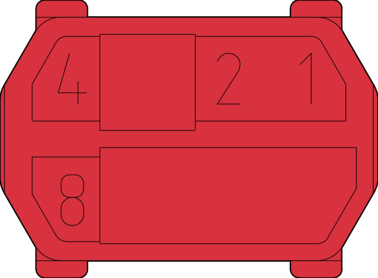

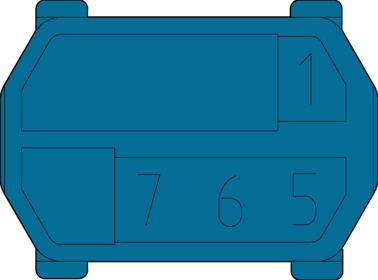

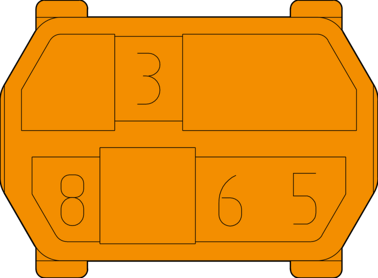

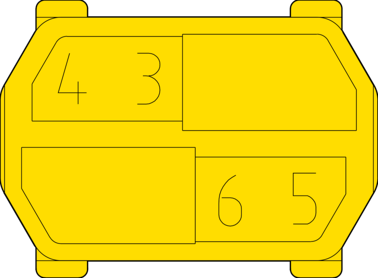

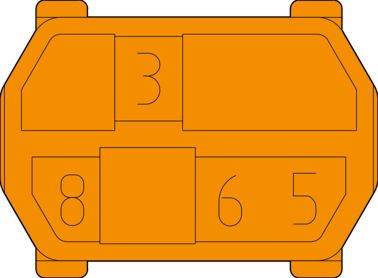

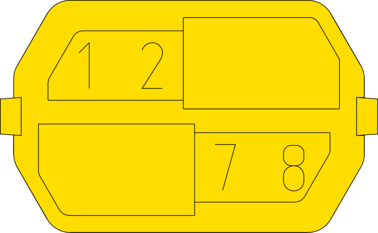

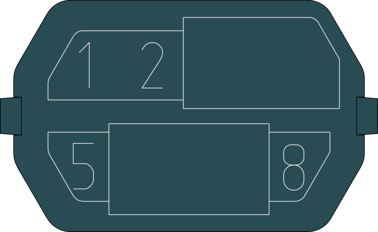

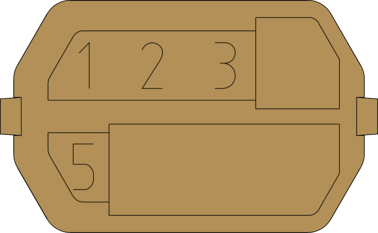

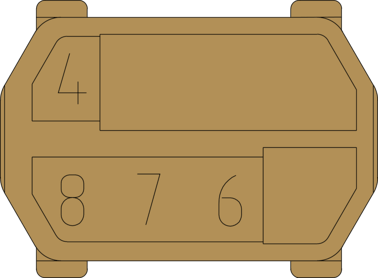

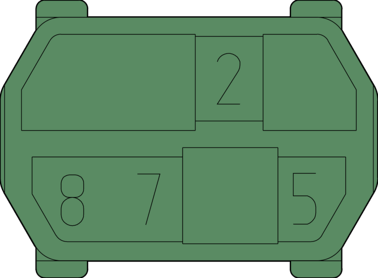

  • Accessories such as shrouds and coding keys

Applications

  • Telecom
  • Network systems
  • CompactPCI
  • Medical technology
  • Industrial computers (IPC)
Female connectors

hm2.0 Female connector, type A Part No. 244-11000-15

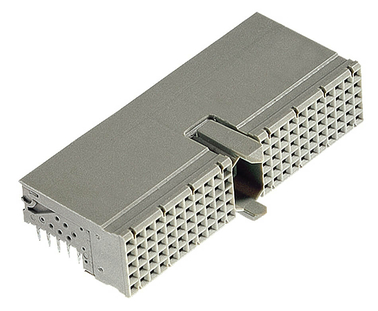

hm A FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type A Part No. 244-11300-15

hm A FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type A Part No. 244-11305-15

hm A FL Foto
90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11305-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts90
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type A Part No. 244-11306-15

hm A FL Foto
90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11306-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts90
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

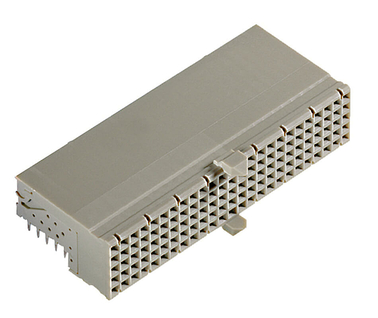

hm2.0 Female connector, type AB25 Part No. 244-61000-15

hm AB25 FL Foto
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB25 Part No. 244-61000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type AB25 Part No. 244-61300-15

hm AB25 FL Foto
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB25 Part No. 244-61300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

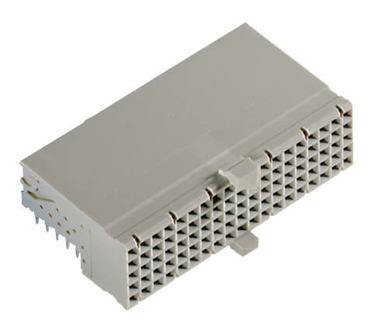

hm2.0 Female connector, type AB19 Part No. 244-63000-15

hm AB19 FL Foto
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB19 Part No. 244-63000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type AB19 Part No. 244-63300-15

hm AB19 FL Foto
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB19 Part No. 244-63300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

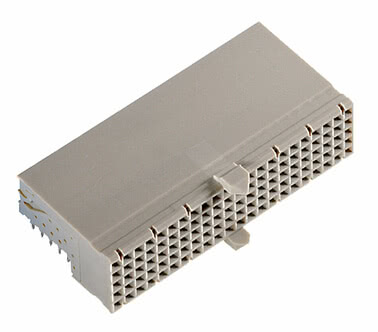

hm2.0 Female connector, type AB22 Part No. 244-62000-15

hm AB22 FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB22 Part No. 244-62000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type AB22 Part No. 244-62300-15

hm AB22 FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB22 Part No. 244-62300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

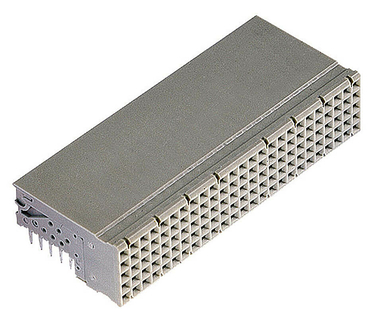

hm2.0 Female connector, type B25 Part No. 244-21000-15

hm B FL Foto
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B25 Part No. 244-21000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type B25 Part No. 244-21300-15

hm B FL Foto
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B25 Part No. 244-21300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type B19 Part No. 244-23000-15

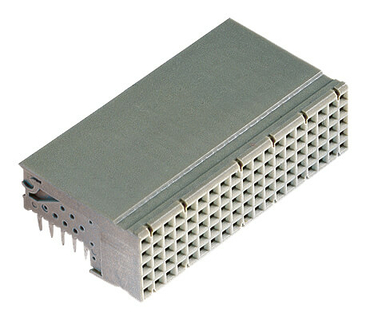

hm B19 FL Foto
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B19 Part No. 244-23000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type B19 Part No. 244-23300-15

hm B19 FL Foto
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B19 Part No. 244-23300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

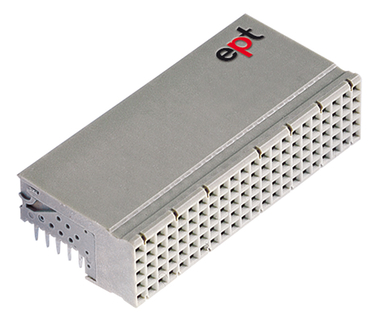

hm2.0 Female connector, type B22 Part No. 244-22000-15

hm B22 FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B22 Part No. 244-22000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type B22 Part No. 244-22300-15

hm B22 FL Foto
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B22 Part No. 244-22300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type C Part No. 244-31000-15

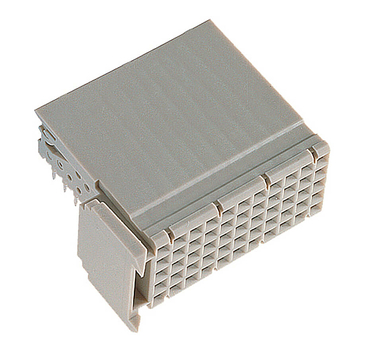

hm C FL Foto
55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type C Part No. 244-31000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts55
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type C Part No. 244-31300-15

hm C FL Foto
55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type C Part No. 244-31300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts55
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

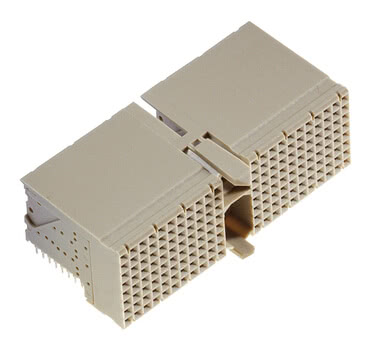

hm2.0 Female connector, type D Part No. 246-11000-15

hm D FL Foto
176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type D Part No. 246-11000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts176
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type D Part No. 246-11300-15

hm D FL Foto
176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type D Part No. 246-11300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts176
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type DE Part No. 246-61000-15

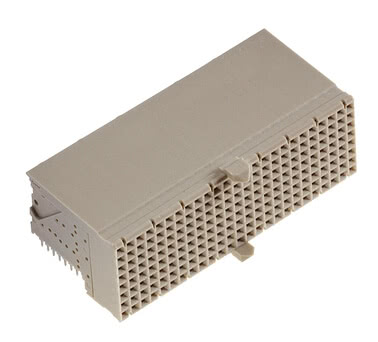

hm DE FL Foto
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type DE Part No. 246-61000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type DE Part No. 246-61300-15

hm DE FL Foto
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type DE Part No. 246-61300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

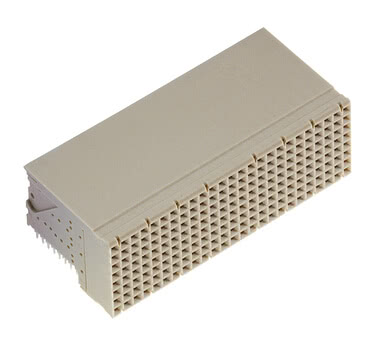

hm2.0 Female connector, type E Part No. 246-21000-15

hm E FL Foto
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type E Part No. 246-21000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type E Part No. 246-21300-15

hm E FL Foto
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type E Part No. 246-21300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

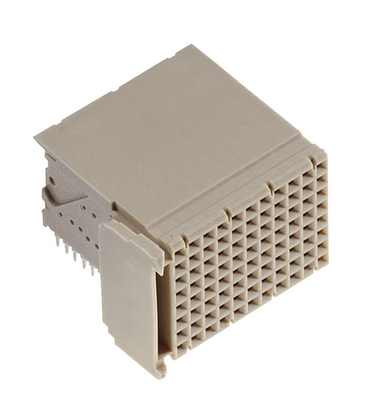

hm2.0 Female connector, type F Part No. 246-31000-15

hm F FL Foto
88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type F Part No. 246-31000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts88
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type F Part No. 246-31300-15

hm F FL Foto
88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type F Part No. 246-31300-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts88
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

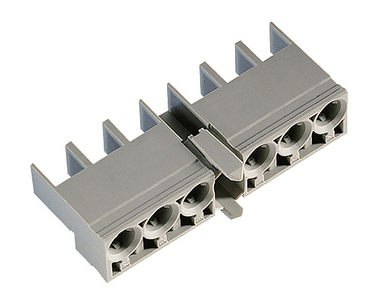

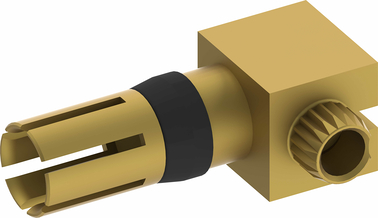

hm2.0 Female connector, type L Part No. 244-51000

hm L FL Foto
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Female connector, type L Part No. 244-51000 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

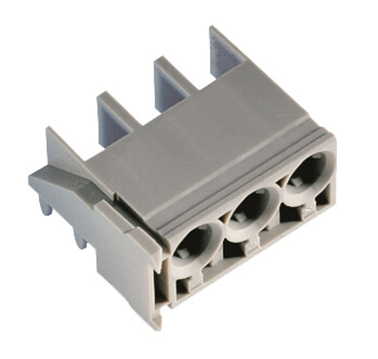

hm2.0 Female connector, type N Part No. 244-52000

hm N FL Foto
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Female connector, type N Part No. 244-52000 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Female connector, type A15 Part No. 244-13000-15

hm A FL Foto
60 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A15 Part No. 244-13000-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts60
Termination TechnologyPress-fit
Termination Length2.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.6 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Male connectors

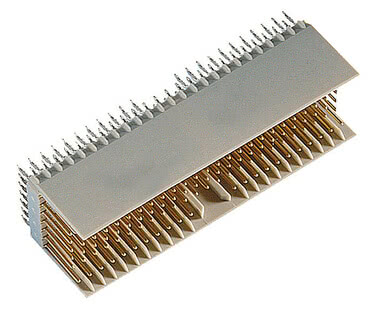

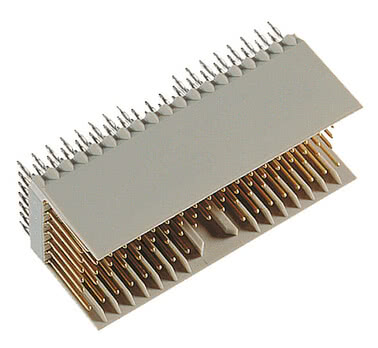

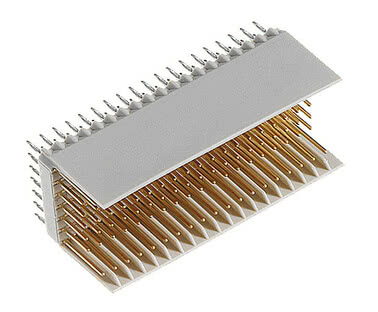

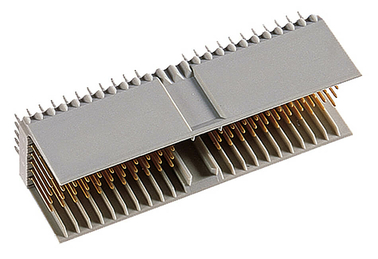

hm2.0 Male connector, type A Part No. 243-11010-15

hm A ML Foto
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11310-15

hm A ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

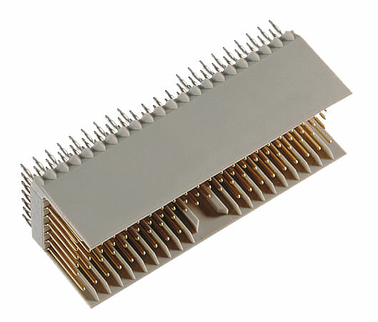

hm2.0 Male connector, type A Part No. 243-11322-15

hm A ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11322-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11323-15

hm A ML Foto
100 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11323-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts100
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11360-15F

hm A ML Foto
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

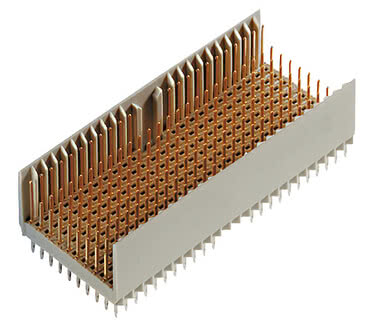

hm2.0 Male connector, type A Part No. 243-11709-15F

hm A ML Foto
100 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11709-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts100
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11710-15F

hm A ML Foto
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11710-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11715-15F

hm A ML Foto
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11715-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11734-15F

hm A ML Foto
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11734-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

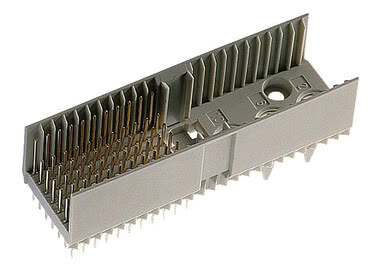

hm2.0 Male connector, type AB25 Part No. 243-61010-15

hm AB25 ML Foto
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB25 Part No. 243-61310-15

hm AB25 ML Foto
169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts169
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB25 Part No. 243-61320-15

hm AB25 ML Foto
169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts169
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB25 Part No. 243-61360-15F

hm AB25 ML Foto
169 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts169
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB19 Part No. 243-63010-15

hm AB19 ML Foto
95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB19 Part No. 243-63310-15

hm AB19 ML Foto
127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts127
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB19 Part No. 243-63320-15

hm AB19 ML Foto
127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts127
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB19 Part No. 243-63360-15F

hm AB19 ML Foto
127 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts127
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB22 Part No. 243-62010-15

hm AB22 ML Foto
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB22 Part No. 243-62310-15

hm AB22 ML Foto
146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts146
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB22 Part No. 243-62320-15

hm AB22 ML Foto
146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts146
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type AB22 Part No. 243-62360-15F

hm AB22 ML Foto
146 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts146
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

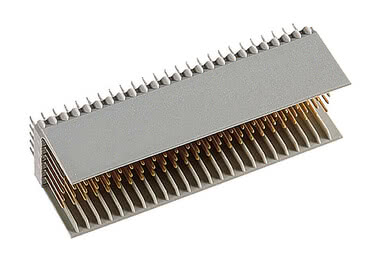

hm2.0 Male connector, type B25 Part No. 243-21010-15

hm B ML Foto
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B25 Part No. 243-21020-15

hm B ML Foto
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21020-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts125
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B25 Part No. 243-21310-15

hm B ML Foto
175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts175
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B25 Part No. 243-21320-15

hm B ML Foto
175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts175
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23310-15

hm B19 ML Foto
95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts95
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23320-15

hm B19 ML Foto
133 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23360-15F

hm B19 ML Foto
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23361-15F

hm B19 ML Foto
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23361-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23371-15F

hm B19 ML Foto
133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23371-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23700-15F

hm B19 ML Foto
133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23700-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B19 Part No. 243-23716-15F

hm B19 ML Foto
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23716-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts133
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

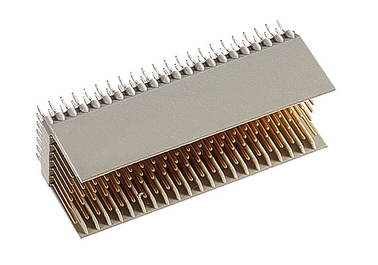

hm2.0 Male connector, type B22 Part No. 243-22310-15

hm B22 ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22311-15

hm B22 ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22311-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22312-15

hm B22 ML Foto
132 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22312-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts132
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22320-15

hm B22 ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22351-15F

hm B22 ML Foto
132 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22351-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts132
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22360-15F

hm B22 ML Foto
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22360-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22361-15F

hm B22 ML Foto
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22361-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22371-15F

hm B22 ML Foto
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22371-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length16 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type B22 Part No. 243-22734-15F

hm B22 ML Foto
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22734-15F - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length14.5 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

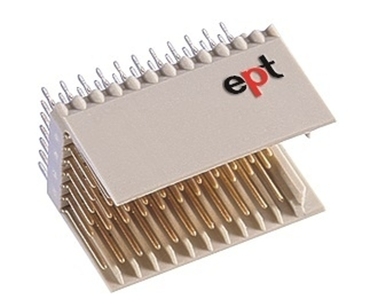

hm2.0 Male connector, type C Part No. 243-31010-15

hm C ML Foto
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts55
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type C Part No. 243-31020-15

hm C ML Foto
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31020-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts55
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type C Part No. 243-31310-15

hm C ML Foto
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts77
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type C Part No. 243-31320-15

hm C ML Foto
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31320-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts77
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

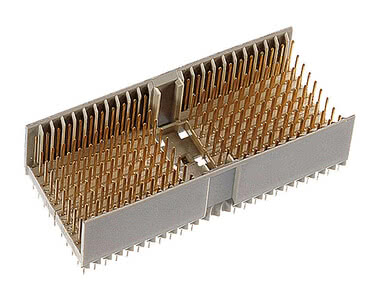

hm2.0 Male connector, type D Part No. 245-11010-15

hm D ML Foto
176 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type D Part No. 245-11010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts176
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type D Part No. 245-11310-15

hm D ML Foto
220 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type D Part No. 245-11310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts220
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

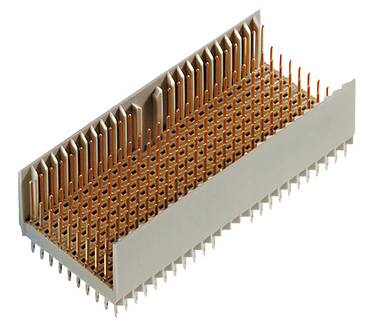

hm2.0 Male connector, type DE Part No. 245-61010-15

hm DE ML Foto
200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type DE Part No. 245-61010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type DE Part No. 245-61310-15

hm DE ML Foto
244 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type DE Part No. 245-61310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts244
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

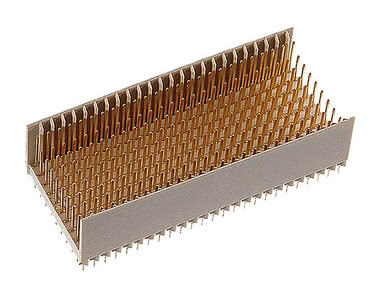

hm2.0 Male connector, type E Part No. 245-21010-15

hm E ML Foto
200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type E Part No. 245-21010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts200
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type E Part No. 245-21310-15

hm E ML Foto
250 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type E Part No. 245-21310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts250
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type F Part No. 245-31010-15

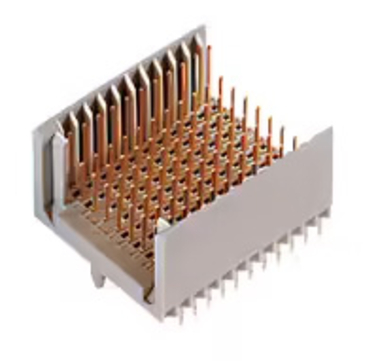

hm F ML Foto
88 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type F Part No. 245-31010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts88
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type F Part No. 245-31310-15

hm F ML Foto
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type F Part No. 245-31310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts110
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

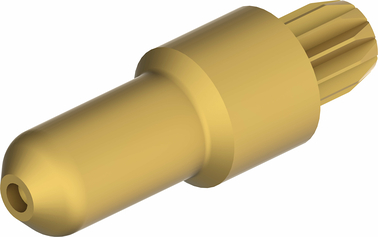

hm2.0 Male connector, type L Part No. 243-51000

hm L ML Foto
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type L Part No. 243-51000 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type M Part No. 243-41010-15

hm M ML Foto
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type M Part No. 243-41010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts55
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type M Part No. 243-41310-15

hm M ML Foto
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type M Part No. 243-41310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts77
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type N Part No. 243-52000

hm N ML Foto
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type N Part No. 243-52000 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A15 Part No. 243-13010-15

hm A ML Foto
60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13010-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts60
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A15 Part No. 243-13020-15

hm A ML Foto
60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13020-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts60
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A15 Part No. 243-13310-15

hm A ML Foto
84 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13310-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts84
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

hm2.0 Male connector, type A Part No. 243-11321-15

hm A ML Foto
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11321-15 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts154
Termination TechnologyPress-fit
Termination Length3.7 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinContact: max. 0.75 N, Shielding: max. 1 N
Separating Force per PinContact: min. 0.15 N, Shielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Clearance and Creepage≥ 0.8 mm
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Accessories

hm2.0 Coding key female connector Part No. 244-8011

hm Kodiereinsatz FL 4578 Zeichnung
for hm female connectors, Nut brown RAL 8011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8011 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8012

hm Kodiereinsatz FL 3567 Zeichnung
for hm female connectors, Strawberry red RAL 3018, Telephony Specification
Perpendicular
hm2.0 Coding key female connector Part No. 244-8012 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8013

hm Kodiereinsatz FL 2478 Zeichnung
for hm female connectors, Blue lilac RAL 4005
Perpendicular
hm2.0 Coding key female connector Part No. 244-8013 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8014

hm Kodiereinsatz FL 2348 Zeichnung
for hm female connectors, Brilliant blue RAL 5007, 5.0 V cPCI
Perpendicular
hm2.0 Coding key female connector Part No. 244-8014 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8021

hm Kodiereinsatz FL 1346 Zeichnung
for hm female connectors, Reseda green RAL 6011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8021 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8031

hm Kodiereinsatz FL 1278 Zeichnung
for hm female connectors, Cadmium yellow RAL 1021, 3.3 V cPCI
Perpendicular
hm2.0 Coding key female connector Part No. 244-8031 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

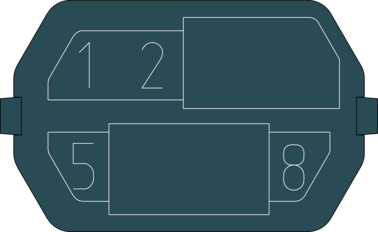

hm2.0 Coding key female connector Part No. 244-8032

hm Kodiereinsatz FL 1258 Zeichnung
for hm female connectors, Slate grey RAL 7015
Perpendicular
hm2.0 Coding key female connector Part No. 244-8032 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8033

hm Kodiereinsatz FL 1256 Zeichnung
for hm female connectors, Steel blue RAL 5011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8033 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8034

hm Kodiereinsatz FL 1247 Zeichnung
for hm female connectors, Pastel orange RAL 2003
Perpendicular
hm2.0 Coding key female connector Part No. 244-8034 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key female connector Part No. 244-8041

hm Kodiereinsatz FL 1235 Zeichnung
for hm female connectors, Ocher yellow RAL 1024
Perpendicular
hm2.0 Coding key female connector Part No. 244-8041 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8011

hm Kodiereinsatz ML 1236 Zeichnung.png
for hm male connectors, Nut brown RAL 8011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8011 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8012

hm Kodiereinsatz ML 1248 Zeichnung
for hm male connectors, Strawberry red RAL 3018, Telephony Specification
Perpendicular
hm2.0 Coding key male connector Part No. 243-8012 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8013

hm Kodiereinsatz ML 1356 Zeichnung
for hm male connectors, Blue lilac RAL 4005
Perpendicular
hm2.0 Coding key male connector Part No. 243-8013 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8014

hm Kodiereinsatz ML 1567 Zeichnung
for hm male connectors, Brilliant blue RAL 5007, 5.0 V cPCI
Perpendicular
hm2.0 Coding key male connector Part No. 243-8014 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8021

hm Kodiereinsatz ML 2578 Zeichnung
for hm male connectors, Reseda green RAL 6011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8021 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8031

hm Kodiereinsatz ML 3456 Zeichnung
for hm male connectors, Cadmium yellow RAL 1021, 3.3 V cPCI
Perpendicular
hm2.0 Coding key male connector Part No. 243-8031 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

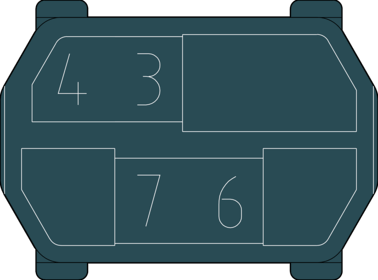

hm2.0 Coding key male connector Part No. 243-8032

hm Kodiereinsatz ML 3467 Zeichnung
for hm male connectors, Slate grey RAL 7015
Perpendicular
hm2.0 Coding key male connector Part No. 243-8032 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8033

hm Kodiereinsatz ML 3478 Zeichnung
for hm male connectors, Steel blue RAL 5011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8033 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8034

hm Kodiereinsatz ML 3568 Zeichnung
for hm male connectors, Pastel orange RAL 2003
Perpendicular
hm2.0 Coding key male connector Part No. 243-8034 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Coding key male connector Part No. 243-8041

hm Kodiereinsatz ML 4678 Zeichnung
for hm male connectors, Ocher yellow RAL 1024
Perpendicular
hm2.0 Coding key male connector Part No. 243-8041 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type A Part No. 244-11600-1

hm A FL Foto
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type A Part No. 244-11600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts22
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type B25 Part No. 244-21600-1

hm B FL Foto
25 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B25 Part No. 244-21600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts25
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type B19 Part No. 244-23600-1

hm B19 FL Foto
19 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B19 Part No. 244-23600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts19
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type B22 Part No. 244-22600-1

hm B22 FL Foto
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B22 Part No. 244-22600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts22
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type C Part No. 244-31600-1

hm C FL Foto
11 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type C Part No. 244-31600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts11
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type D Part No. 246-11600-1

hm D FL Foto
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type D Part No. 246-11600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts22
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type E Part No. 246-21600-1

hm E FL Foto
25 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type E Part No. 246-21600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts25
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 lower shield, type F Part No. 246-31600-1

hm F FL Foto
11 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type F Part No. 246-31600-1 - Technical data

Basics

SpecificationIEC 61076-4-101
Performance Level2
No. of Contacts11
Termination TechnologyPress-fit
Termination Length3.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialBronze

Mechanical

Pitch2.0 mm
Mating Force per PinShielding: max. 1 N
Separating Force per PinShielding: min. 0.15 N
Durability> 250 mating cycles

Electrical

Operational Current1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistancemax. 20 mΩ
Insulation Resistancemin. 104
Test Voltage750 V r.m.s
Data Transfer Rate3.125 Gbit/s

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 High power contact for type L, M and N Part No. 915-61011

hm Hochstromkontakt L M N ML Foto
high power contacts for type L, M and N, termination length 3.5 mm, für min 1.44 mm Leiterplattendicke, getestet nach IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 High power contact for type L, M and N Part No. 915-61011 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length3.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Mechanical

Mating Force per Pinmax. 10 N
Separating Force per Pinmin. 4.0 N
Durability> 250 mating cycles

Electrical

Operational Currentmax. 40 A
Contact Resistancemax. 1.0 mΩ

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 High power contact for type L and N Part No. 916-62011

hm Hochstromkontakt L M N FL Foto
high power contacts for type L, and N, termination length 2.4 mm, for PCB ≥ 1.44 mm
Perpendicular
Press-fit
Power
hm2.0 High power contact for type L and N Part No. 916-62011 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length2.4 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Mechanical

Mating Force per Pinmax. 10 N
Separating Force per Pinmin. 4 N
Durability> 500 mating cycles

Electrical

Operational Currentmax. 40 A
Contact Resistancemax. 1.0 mΩ

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud A Part No. 243-5525-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud A Part No. 243-5525-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud A Part No. 243-5525-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud A Part No. 243-5525-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud A Part No. 243-5525-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-1/1

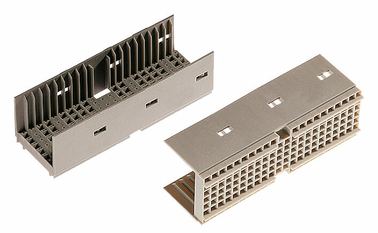

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-2/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-3/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-4/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-5/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-1/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-2/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-3/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-4/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-5/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-1/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-2/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-3/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-4/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-5/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud C Part No. 243-5511-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-1/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud C Part No. 243-5511-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-2/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud C Part No. 243-5511-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-3/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud C Part No. 243-5511-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-4/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

hm2.0 Shroud C Part No. 243-5511-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-5/1 - Technical data

Basics

SpecificationIEC 61076-4-101
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled, UL 94 V-0

Mechanical

Pitch2.0 mm

Approval / Compliance

EnvironmentRoHS compliant

Features

ept hm2 0
hm 2.0 connectors are used in CompactPCI, a PICMG standard for high-end systems in 19-inch technology with passive backplanes. They are suitable for strict standards as regards performance, robustness, and reliability due to their robust design and data transfer rates of up to 3.125 Gbps. hm 2.0 connectors are increasingly used in industrial applications as well, because of their robust connector system and high contact density with a pitch of 2 mm. The connectors are available with five or eight signal rows and 12 different pin lengths.
hm20 Federleiste
hm2.0 Female Connector Type A

detail overview

2 mm pitch
press-fit zone Tcom press®
internal spring contact
coding
PBT
with or without shield
hm20 Messerleiste
hm2.0 Male Connector Type A

detail overview

2 mm pitch
PBT
press-fit zone Tcom press®
5 internal contact rows for signal transmission
outside contact rows for shielding

The IEC 61076-4-101 standard:

The hm 2.0 series of hard metric connectors from ept was developed and manufactured in accordance with the international IEC 61076-4-101 standard. This provides users with a global standard for the connection of printed circuit boards by means of multi-pin connectors. Printed circuit boards can be easily exchanged from system to system. Important parameters such as fixation, shielding, and coding remain compatible beyond the application.

hm 2.0 connectors from ept are designed with a pitch of 2 mm. These connectors can easily be lined up without interrupting the 2 mm pitch at the interfaces. This arrangement offers advantages especially in the design of the printed circuit board, as there is no loss of space within individual connector modules.

Modules A, D, L, and M are equipped with a multi-purpose block. This accommodates the coding keys provided in accordance with the standard. The molded guides ensure proper orientation of the male and female connectors to each other as well as anti-twist protection before contact is made. The coding keys are connected and released again using a simple plug and pull tool.

ept offers four different lengths for the hm 2.0 male connectors for the connection side and three lengths for the mating side. The different termination lengths are necessary to connect/disconnect certain signal or ground lines first when plugging or unplugging assemblies. The long 11.25-mm connections are mainly needed for the shield rows z and f.

The insulator materials are fitted with chamfers at the ends for better orientation and to prevent the connectors from twisting. These chamfers ensure precise positioning on the circuit board and provide the modules the necessary retention force.

Coding of the connectors is essential in a modern bus system to prevent confusion with the circuit boards. The possibility of coding is already specified in IEC 61076-4-101. Coding keys can be manually engaged in the multi-purpose block of connector types A, D, L, and M. The various keys are color-coded, enabling quick visual identification.

hm 2.0 System Modularity

ept hm 2.0 modules offer a number of possibilities to optimize high contact densities, especially in combination with coaxial or fiber optic connections.

It is possible to establish connections of 50 mm, in length using the type A module, in stages of 25 mm up to any total length.

It is generally best to arrange the connectors with a multi-purpose block (types A, M, L) at the beginning of a connector row. The type B module is placed between other modules only.

The 25-mm modules of type C and N are placed at the end of a connector row because of their reverse polarity protection. Correct plugging of modules is ensured by the coding keys in the multi-purpose block and by the type C and N modules.

hm 2.0 for Highspeed Applications

It is possible to realize high-speed applications with hm 2.0 connectors from ept. It was possible to attain data transfer rates of up to 3.125 Gbps under the framework conditions described below.
  • Two hm 2.0 connector pairs from ept
  • Two standard FR4 PCBs at a thickness of 1.6 mm and a strip line length of 115 mm
  • One standard FR4 backplane at a thickness of 4.4 mm and a strip line length of 400 mm
  • Special attention is paid to connection interruptions, the stub effect, the skin effect, and dielectric losses in the application design
We would be happy to provide you with more details and the corresponding technical literature on highspeed applications using hm 2.0 connectors. Get in touch with us.

FAQ:
