High Speed SMT PCB Connector for 16 Gbps applications

Colibri® is a shielded, two-row SMT connector system with a 0.5-mm pitch.

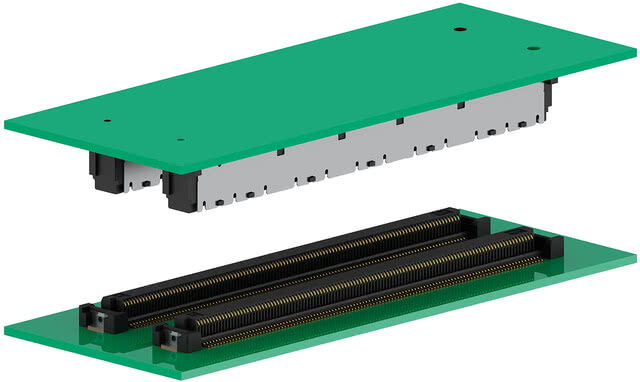

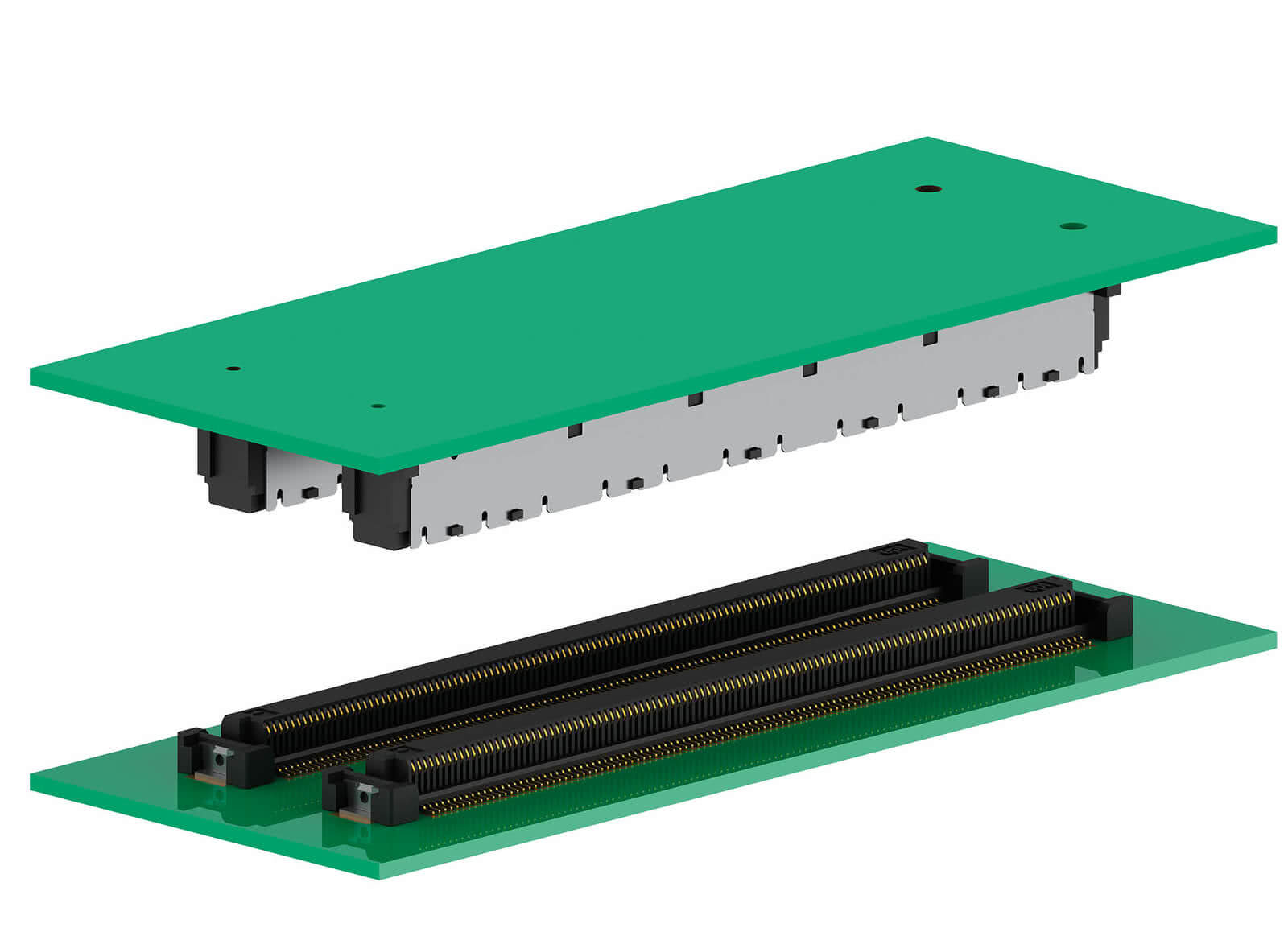

Colibri Anwendung 440

Features

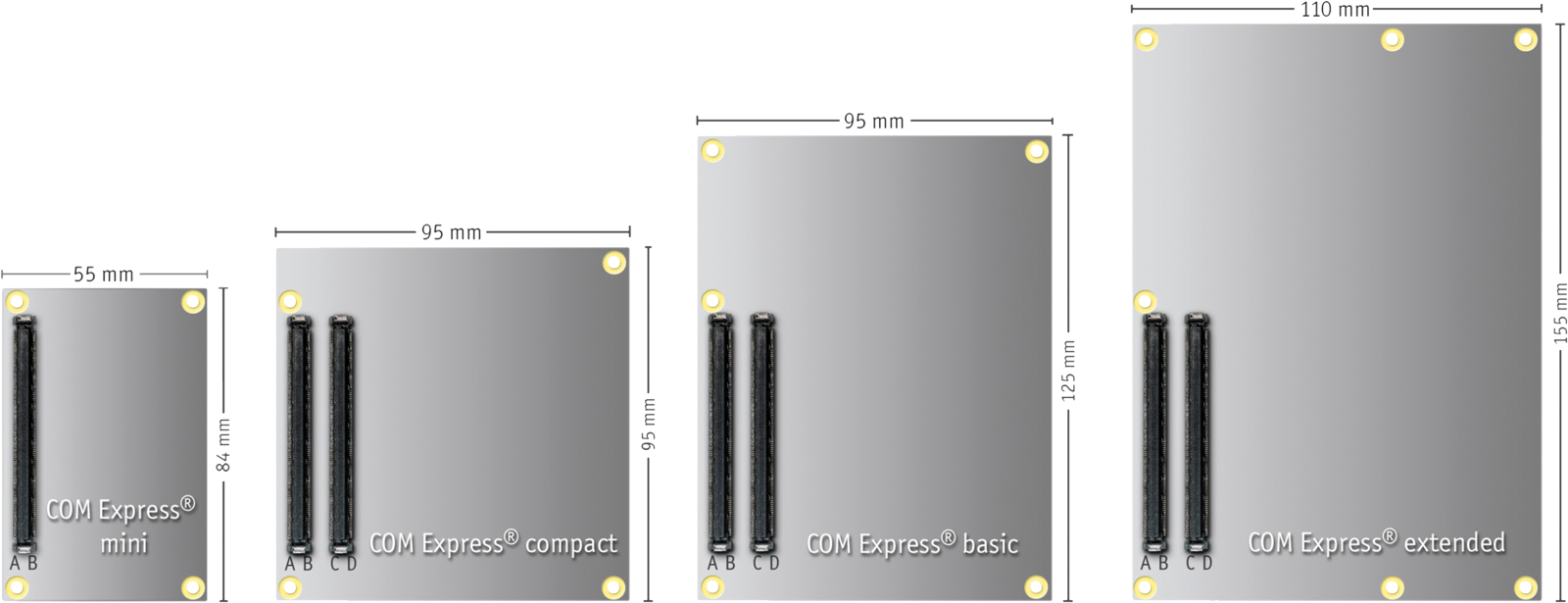

  • Meets the requirements of PICMG COM Express®
  • and SFF-SIG CoreExpress®
  • Compatible with popular connectors
  • For 10+ Gbit/s or 16+ Gbit/s applications
  • Rugged connector design
  • Integrated area for placement
  • Packaged in tape & reel

Applications

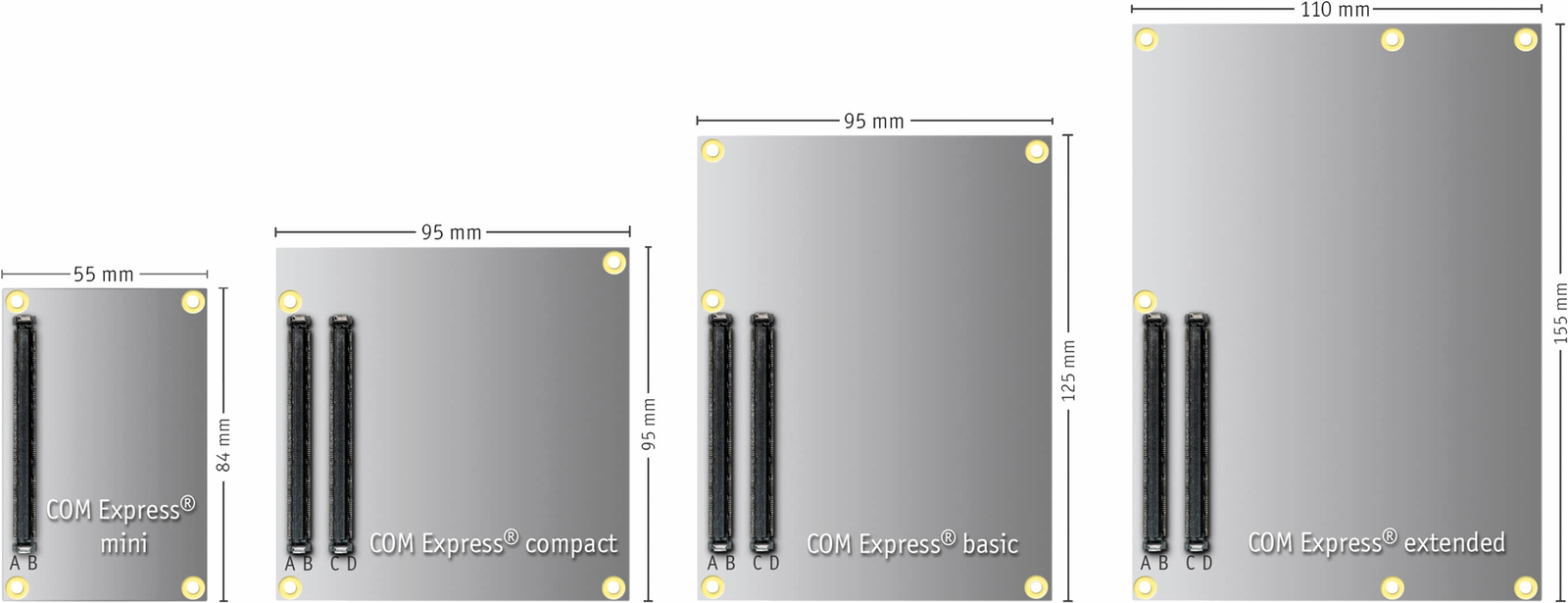

  • COM Express®
  • CoreExpress®
  • Mezzanine board-to-board
  • VITA59
Plug 10+

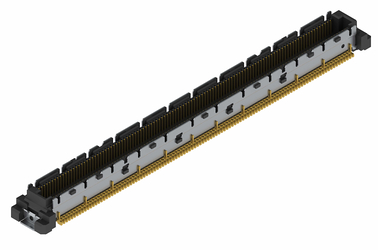

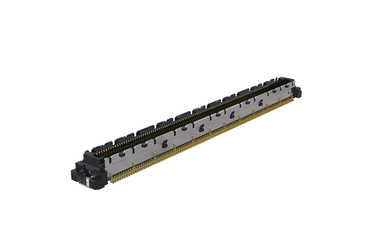

Colibri Plug 220, 5mm Part No. 401-51101-51

Colibri Plug 5mm 220pol
for 5 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 220, 5mm Part No. 401-51101-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

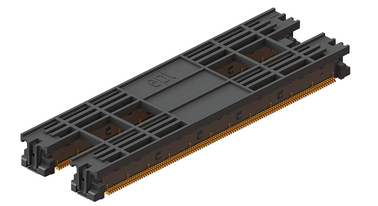

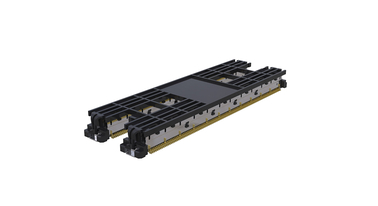

Colibri Plug 440, 5mm Part No. 401-51501-51

Colibri Plug 5mm 440 Foto
for 5 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 440, 5mm Part No. 401-51501-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

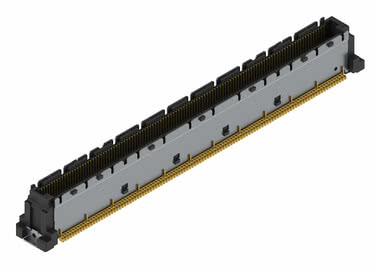

Colibri Plug 220, 8mm Part No. 401-55101-51

Colibri Plug 8mm 220pol
for 8 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 220, 8mm Part No. 401-55101-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

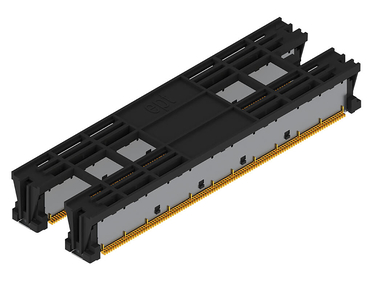

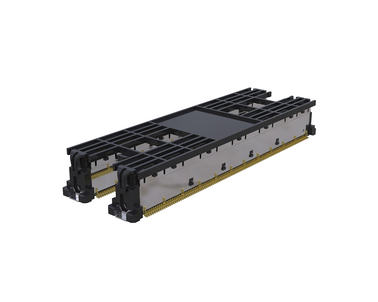

Colibri Plug 440, 8mm Part No. 401-55501-51

Colibri Plug 8mm 440 Foto
for 8 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 440, 8mm Part No. 401-55501-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

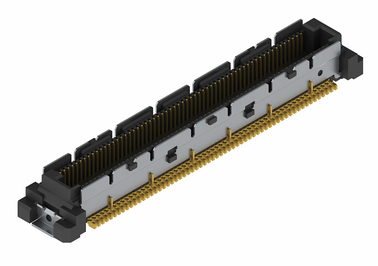

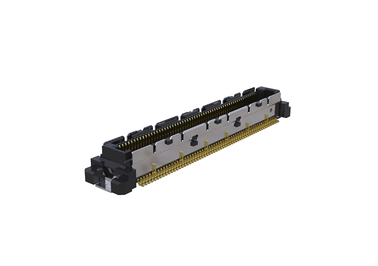

Colibri Plug 120, 5mm Part No. 401-51401-51

Colibri Plug 5mm 120pol
for 5 mm board-to-board distance, 120 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 120, 5mm Part No. 401-51401-51 - Technical data

Basics

No. of Contacts120
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

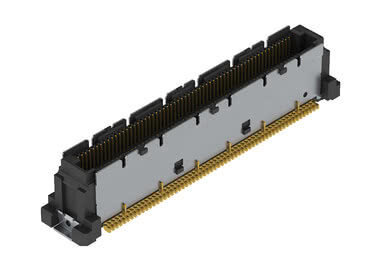

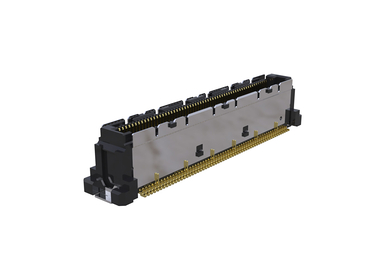

Colibri Plug 120, 8mm Part No. 401-55401-51

Colibri Plug 8mm 120pol
for 8 mm board-to-board distance, 120 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 120, 8mm Part No. 401-55401-51 - Technical data

Basics

No. of Contacts120
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

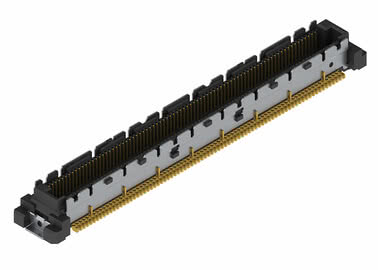

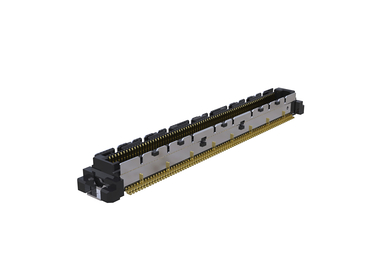

Colibri Plug 160, 5mm Part No. 401-51301-51

Colibri Plug 5mm 160pol
for 5 mm board-to-board distance, 160 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 160, 5mm Part No. 401-51301-51 - Technical data

Basics

No. of Contacts160
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

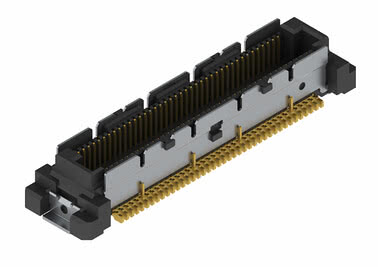

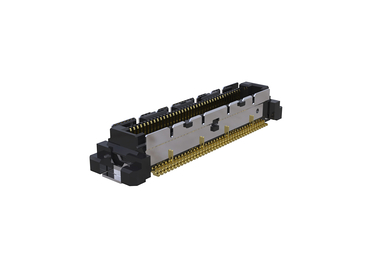

Colibri Plug 80, 5mm Part No. 401-51601-51

Colibri Plug 5mm 80pol
for 5 mm board-to-board distance, 80 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 80, 5mm Part No. 401-51601-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

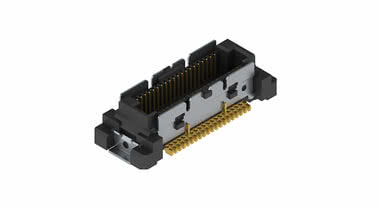

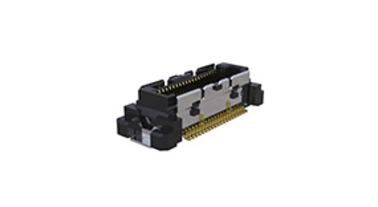

Colibri Plug 40, 5mm Part No. 401-51701-51

Colibri Plug 5mm 40pol
for 5 mm board-to-board distance, 40 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 40, 5mm Part No. 401-51701-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

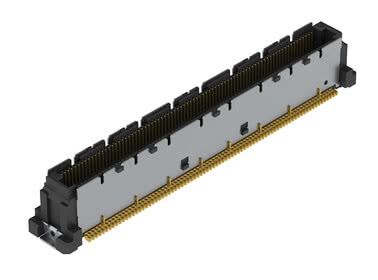

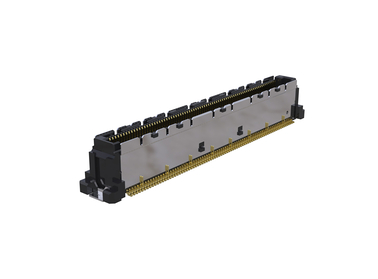

Colibri Plug 160, 8mm Part No. 401-55301-51

Colibri Plug 8mm 160pol
for 8 mm board-to-board distance, 160 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 160, 8mm Part No. 401-55301-51 - Technical data

Basics

No. of Contacts160
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

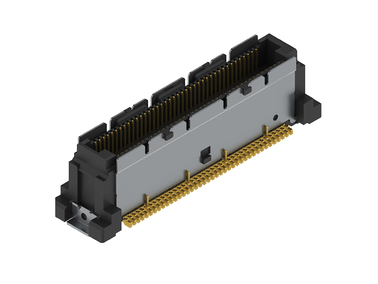

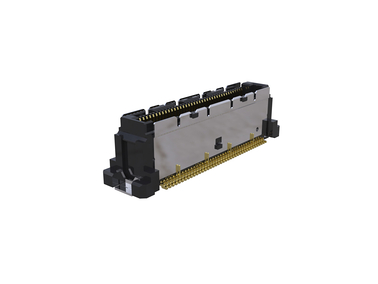

Colibri Plug 80, 8mm Part No. 401-55601-51

Colibri Plug 8mm 80pol
for 8 mm board-to-board distance, 80 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 80, 8mm Part No. 401-55601-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 40, 8mm Part No. 401-55701-51

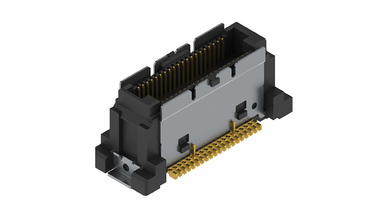

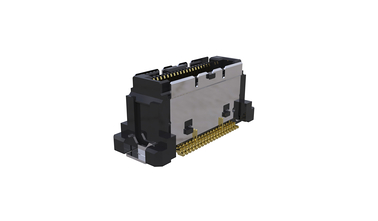

Colibri Plug 8mm 40pol
for 8 mm board-to-board distance, 40 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Plug 40, 8mm Part No. 401-55701-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Plug 16+

Colibri Plug 16+ 220, 5mm Part No. 401-51103-51

Colibri Plug 5mm 220pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 220, 5mm Part No. 401-51103-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 440, 5mm Part No. 401-51503-51

Colibri Plug 5mm 440 Foto
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 440, 5mm Part No. 401-51503-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 220, 8mm Part No. 401-55103-51

Colibri Plug 8mm 220pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 220, 8mm Part No. 401-55103-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 440, 8mm Part No. 401-55503-51

Colibri Plug 8mm 440 Foto
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 440, 8mm Part No. 401-55503-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 160, 5mm Part No. 401-51303-51

Colibri Plug 5mm 160pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 160 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 160, 5mm Part No. 401-51303-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts160
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 120, 5mm Part No. 401-51403-51

Colibri Plug 5mm 120pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 120 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 120, 5mm Part No. 401-51403-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts120
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 80, 5mm Part No. 401-51603-51

Colibri Plug 5mm 80pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 80 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 80, 5mm Part No. 401-51603-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 40, 5mm Part No. 401-51703-51

Colibri Plug 5mm 40pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 5 mm board-to-board distance, 40 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 40, 5mm Part No. 401-51703-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 160, 8mm Part No. 401-55303-51

Colibri Plug 8mm 160pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 160 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 160, 8mm Part No. 401-55303-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts160
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 120, 8mm Part No. 401-55403-51

Colibri Plug 8mm 120pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 120 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 120, 8mm Part No. 401-55403-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts120
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 80, 8mm Part No. 401-55603-51

Colibri Plug 8mm 80pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 80 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 80, 8mm Part No. 401-55603-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri Plug 16+ 40, 8mm Part No. 401-55703-51

Colibri Plug 8mm 40pol
data transfer rate 16+ Gbit/s, for PCIe Gen4, for 8 mm board-to-board distance, 40 contacts, termination technology SMT, pitch 0.5 mm
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 40, 8mm Part No. 401-55703-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate16 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Receptacle

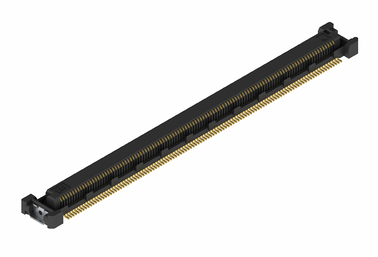

Colibri Receptacle 220 Part No. 402-51101-51

Colibri Receptacle 220pol neu
for all board-to-board distances, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 220 Part No. 402-51101-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

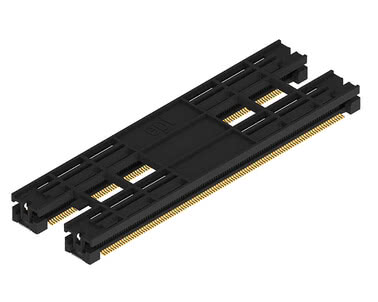

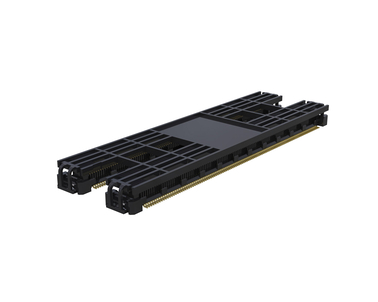

Colibri Receptacle 440 Part No. 402-51501-51

Colibri Receptacle 440 Foto
for all board-to-board distances, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 440 Part No. 402-51501-51 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

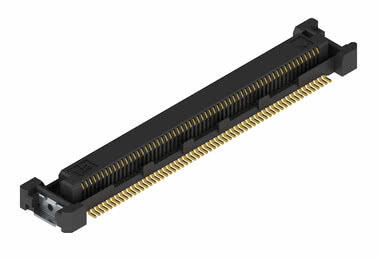

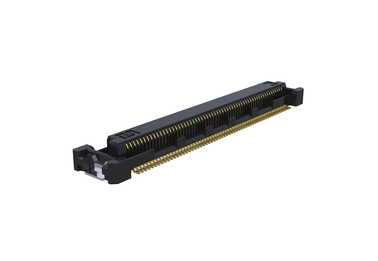

Colibri Receptacle 120 Part No. 402-51401-51

Colibri Receptacle 120pol neu
for all board-to-board distances, 120 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 120 Part No. 402-51401-51 - Technical data

Basics

No. of Contacts120
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

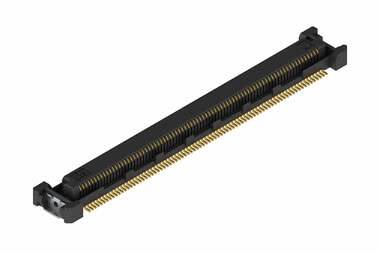

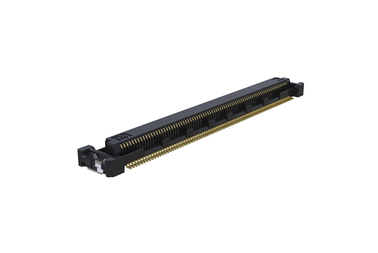

Colibri Receptacle 160 Part No. 402-51301-51

Colibri Receptacle 160pol neu
for all board-to-board distances, 160 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 160 Part No. 402-51301-51 - Technical data

Basics

No. of Contacts160
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

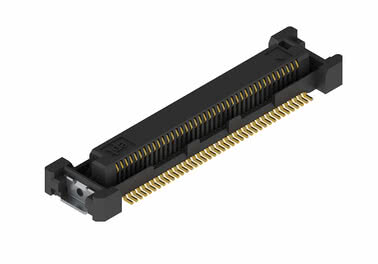

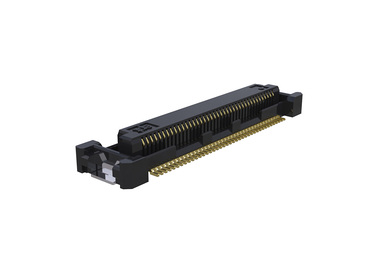

Colibri Receptacle 80 Part No. 402-51601-51

Colibri Receptacle 80pol neu
for all board-to-board distances, 80 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 80 Part No. 402-51601-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

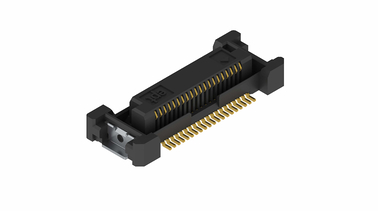

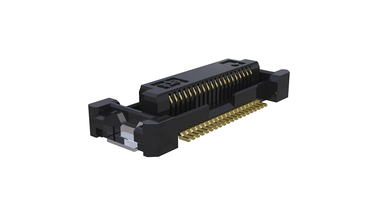

Colibri Receptacle 40 Part No. 402-51701-51

Colibri Receptacle 40pol neu
for all board-to-board distances, 40 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s
Parallel
SMT
High Density
High Speed
Colibri Receptacle 40 Part No. 402-51701-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Durability30 mating cycles
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Plug Heavy Au

Colibri heavy Au Plug 10+ 220, 5mm Part No. 401-51101-52

Colibri Plug 5mm 220pol
for 5 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Plug 10+ 220, 5mm Part No. 401-51101-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri heavy Au Plug 10+ 440, 5mm Part No. 401-51501-52

Colibri Plug 5mm 440 Foto
for 5 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Plug 10+ 440, 5mm Part No. 401-51501-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri heavy Au Plug 10+ 220, 8mm Part No. 401-55101-52

Colibri Plug 8mm 220pol
for 8 mm board-to-board distance, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Plug 10+ 220, 8mm Part No. 401-55101-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri heavy Au Plug 10+ 440, 8mm Part No. 401-55501-52

Colibri Plug 8mm 440 Foto
for 8 mm board-to-board distance, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Plug 10+ 440, 8mm Part No. 401-55501-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
125
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.15 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Receptacle Heavy Au

Colibri heavy Au Receptacle 220 Part No. 402-51101-52

Colibri Receptacle 220pol neu
for all board-to-board distances, 220 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Receptacle 220 Part No. 402-51101-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts220
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Colibri heavy Au Receptacle 440 Part No. 402-51501-52

Colibri Receptacle 440 Foto
for all board-to-board distances, 440 contacts, termination technology SMT, pitch 0.5 mm, data transfer rate 10+ Gbit/s, 0.76µm Au
Parallel
SMT
High Density
High Speed
Rugged
Colibri heavy Au Receptacle 440 Part No. 402-51501-52 - Technical data

Basics

SpecificationPICMG® COM.0 Rev 3.0
No. of Contacts440
Termination TechnologySMT
Board-to-Board Distance5 mm & 8 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
Plating0.76µm Au over Ni

Mechanical

Pitch0.5 mm
Mating Force per Pinmax. 0.9 N
Separating Force per Pinmin. 0.1 N
Coplanaritymax. 0.1 mm

Electrical

Operational Currentmax. 0.5 A
Operational Voltage50 VAC
Contact Resistancemax. 75 mΩ
Clearance and Creepage≥ 0.2 mm
Insulation Resistance> 100 MΩ
Test Voltage200 VAC
Data Transfer Rate10 Gbit/s

Processing

Soldering Temperature260°C per J-STD-020
MSL1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Username:
Vielen Dank! Wir werden Ihre Anforderungen prüfen und mit Ihnen Kontakt aufnehmen.

Bei Fragen stehen wir Ihnen jederzeit per E-Mail oder Telefon zur Verfügung.

Kein passendes Produkt gefunden - Produkt jetzt anfragen:

Felder mit * sind Pflichtfelder.

Video: Highlights of the Colibri HighSpeed SMT Connectors

What can Colibri HighSpeed connectors do for your applications? Which board-to-board distances can be generated? Are there different pin counts available?
Watch this animated video to find out!

Features of Colibri COM Express Connectors

Colibri Anwendung 440 2021 03 03 16 03 38
Colibri® is a shielded, two-row SMT connector system with a 0.5-mm pitch.It meets all of the specifications for PICMG COM Express®, SFF-SIG CoreExpress®, and nano-ETXexpress. Colibri® products are compatible with all popular connector systems on the market and have been thoroughly tested.
Colibri Receptacle
Receptacle (Female connector)

for COM Module
detail overview

Area for pick-and-place
196 signal and 24 ground pins
0.5 mm pitch
Colibri Plug
Plug (Male connector)

for Carrier Board
detail overview

Optional: pick-and-place cap
Guide posts
Shield
SMT fixing

The COM Express Standard

COM Express Logo
The COM Express® standard was developed by PICMG for the computer-on-module (COM) form factor. The standard specifies, among other things, what size the module should be and where the mounting holes and pin connections for the carrier board should be positioned.
COM Express® modules integrate the core functionalities of a bootable PC, including CPU, a graphics professor, internal memory, and standard interfaces.
Connecting a COM module to a carrier board reduces development time and costs. In addition, it is possible not only to extend the cycle of a product, but also to upgrade it by attaching newer, higher performance COM Express® modules to the carrier board.

PICMG COM Express® Module Sizes

COMExpress boards

Typical areas of application for COM Express

  • Industrial automation
  • Kiosk and POS systems
  • Medical technology
  • Metrology
  • Consumer electronics and gaming
  • Transportation
  • Facilities engineering
  • Server

PICMG Colibri Connectors for COM Express

Produktmanager Schmid Colibri 16Gbps mRand
"Hardware developers have been telling us time and again that requirements on highspeed connectors have increased, calling for SMT connectors that can provide speeds of over 8 Gbps.
So far the 10 Gbps version of our Colibri SMT-connector was able to satisfy with excellent signal integrity. Starting in Spring 2019 we’re rounding out the Colibri HighSpeed connector family with the Plug 16+ enabling flawless data transfer rates of USB 3.1 Gen2 and PCI 4.0 signals.
Our Colibri COM Express SMT connector exhibits an optimal pin design with which HighSpeed applications of 10 or 16 Gbps and more are realizable without any issues. Simulations show exceptional signal integrity – even with high data transfer rates.
I have complete faith in the highspeed capabilities of our Colibri COM Express connectors. Take a look at the features yourself and feel free to order a sample! S-parameters are available on request from ept for use in simulating your proprietary designs."

Wolfgang Schmid, Product Manager ept GmbH

Questions & Answers Regarding Colibri Highspeed Connectors

What data transfer rates are the Colibri SMT connectors suitable for?What highspeed applications are Colibri connectors used for?Where are PICMG-compliant Colibri connectors already being successfully used?How can Colibri SMT circuit board connectors be processed?Is a placement aid necessary for processing Colibri highspeed connectors?Are the PICMG Colibri connectors also delivered in tape-and-reel packaging?Are Colibri COM Express connectors UL-recognized components?Are the ept circuit board connectors RoHS compliant?
What data transfer rates are the Colibri SMT connectors suitable for?

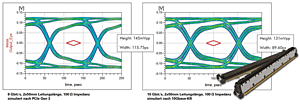

Simulations with the Colibri® COM Express® connector system at 10 or 16 Gbps demonstrate first-rate signal integrity, making the COM Express connector system the top choice for your applications with high data transfer rates of up to 16 Gbps and higher.

mask output eye.png
What highspeed applications are Colibri connectors used for?

Colibri highspeed connectors are ideally suited for high data transfer rates – that is, for all types of highspeed applications. These include COM Express and Mezzanine board-to-board systems with data transfer rates for 10 Gigabit Ethernet and PCI Express Gen3, for example.

Where are PICMG-compliant Colibri connectors already being successfully used?

Colibri COM Express connectors are already in use in the fields of industrial automation, kiosk and POS systems, medical technology, metrology, consumer electronics and gaming, the transportation industry, as well as facilities engineering.

How can Colibri SMT circuit board connectors be processed?

The Colibri connector system is processed using surface-mount technology (SMT) – in other words, it is soldered directly onto the circuit boards. The connectors are delivered in tape-and-reel packaging, allowing for fully automatic pick-and-place processing.

Is a placement aid necessary for processing Colibri highspeed connectors?

The Colibri receptacle is designed to have a big enough pick-and-place area for vacuum pipettes and therefore needs no additional placement aid.
The Colibri plug, too, can be assembled reliably without extra placement aids using a narrow vacuum pipette.

Are the PICMG Colibri connectors also delivered in tape-and-reel packaging?

Yes, Colibri SMT connectors are delivered in tape-and-reel packaging, allowing for fully automatic pick-and-place processing. Delivery in tray packaging is also possible on request.

Are Colibri COM Express connectors UL-recognized components?

Yes, Colibri connectors from ept are UL-recognized components in the U.S. and in Canada.

Are the ept circuit board connectors RoHS compliant?

RoHS (Restriction of Hazardous Substances) is a directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
We confirm that Colibri connectors from ept are RoHS certified and compliant with the RoHS directive (2011/65/EU). You can find more detailed information at RoHS & REACH.

Testimonials about the Colibri 10 Gbps and 16 Gbps highspeed circuit board connectors

Out of respect for our customers’ wish for discretion, we do not list the sources of the following quotes. However, we guarantee the full authenticity of these testimonials.

The limits of the Colibri 10 Gbps have been reached. The new Plug 16+ is breaking through those limitations: Data transfer rates of USB 3.1 Gen2 signals have been working flawlessly since.

Development engineer for embedded computing technology

The fact that COM Express connectors from ept provide the best eye diagram values (jitter, eye height, and eye width) was the decisive factor for us.

Development engineer for embedded computing technology

We were able to extend the level of automation of our mounting machines thanks to the tape-and-reel packaging for Colibri connectors, allowing us to save production costs.

Production planner for COM Express baseboard production

We have exclusively approved the Colibri connectors for our 10 Gbps application.

Development engineer for COM Express module development

We have had no problems whatsoever with the wetting step during reflow soldering ever since we started using Colibri highspeed connectors.

Production manager for COM Express baseboard production

Our manufacturing productivity has increased enormously thanks to the tape-and-reel packaging of Colibri SMT circuit board connectors.

Production manager for COM Express module production

We received phenomenal support from ept when we were introducing Colibri connectors to our production environment. We felt that we were in excellent hands.

Quality assurance manager for embedded computing

ept guarantees the availability of Colibri connectors. This was extremely important for us.

Production planner for COM Express module production
