Instrumentation

Instrumentation
Instrumentation refers to devices that are used to model and monitor processes. They can be found in production facilities, laboratories, or various manufacturing sectors.
Zero8 0.8 mm SMT PCB connector
Zero8 SMT PCB Connector 0.8 mm
Zero8 stands for robust and scalable SMT connections with 0.8 mm pitch. The EMC shielding protect your signals perfectly against external influences in the industrial environment.
Colibri - 0.5mm SMT Connectors
Colibri - 0.5mm SMT
Colibri® is a shielded, two-row SMT connector system with a 0.5-mm pitch.
One27 SMT PCB Connections with a Pitch of 1.27 mm
One27 - 1.27mm SMT
Within the SMT connector family One27 there are available many different connector types including straight and angled versions, as well as flat cable connections. The pin count ranges from 12 to 80 in 1.27 mm pitch.
EC.8 0.8 mm SMT high-speed direct connector
EC.8 SMT direct connector 0.8 mm
High speed forms the essence of the EC.8 edge card connector: A component typical of conventional connectors is dispensed with, thus enabling data transmission rates of up to 28 Gbps.
DIN 41612 Connectors IEC 60603-2
DIN 41612 / IEC 60603-2
Highly Diverse and Time Proven
The DIN 41612/IEC 60603-2 product series consists of 12 basic types and other supplementary versions with a 2.54-mm or 5.08-mm pitch.The choices range from signal connectors with a current rating of up to 1.5 A to power connectors that can handle up to 5.6 A or even 15 A. The wealth of variants makes it possible to use this family of connectors for a very wide range of applications. Standardization ensures that the connectors are compatible with products from different manufacturers.

flexilink Board-to-Board Connections in Press-fit
flexilink Board-to-Board Connections
The flexilink jumper is a non-pluggable board-to-board connector that can be used in a variety of situations.
Varpol Pin Headers and Sockets
Varpol Pin Headers & Sockets
VarPol pin headers and sockets from ept offer a plethora of possibilities for connecting circuit boards.
PC/104, PC/104-Plus Connector
PC/104, PC/104-Plus
PC/104 and PC/104-Plus are standardizations for PC-compatible modules that can be connected to build a complex computer system.
MicroTCA Connectors MTCA
Micro TCA
For MicroTCA® applications, ept offers power connectors that meet PICMG® specifications.
hm 2.0 Hard Metric Connectors IEC 61076-4-101, 2 mm Pitch
hm 2.0 – Hardmetric Connectors
The hm 2.0 series of hardmetric connectors was developed in accordance with the international IEC 61076-4-101 standard.

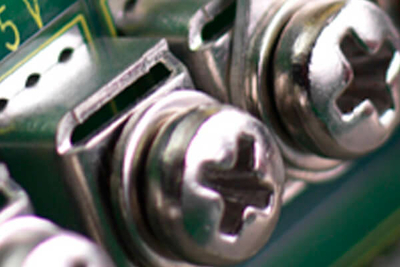

Power Terminals: Power supply for PCBs
Power Terminals
ept power terminals and flat plugs are specially designed to provide power supply connections to circuit boards.
Tools for Press-Fit Technology Connectors
Press-Fit Tools for ept Processing Machines
