Press-Fit Tools for ept Processing Machines
ept offers the corresponding press-fit tools for every press-fit connector in our product portfolio.
This guarantees a complete system solution from a single source.
This guarantees a complete system solution from a single source.
Filter
DIN press-fit tool
Press-fit tool for DIN female connector B Part No. 884-100
upper tool for press-in, for DIN female connector B
Press-fit tool for DIN female connector B/2 Part No. 884-101
upper tool for press-in, for DIN female connector B/2
Press-fit tool for DIN female connector B/3 Part No. 884-102
upper tool for press-in, for DIN female connector B/3
Press-fit tool for DIN male connector B Part No. 884-150
upper tool for press-in, for DIN male connector B
Press-fit tool for DIN male connector B/2 Part No. 884-151
upper tool for press-in, for DIN male connector B/2
Press-fit tool for DIN male connector B/3 Part No. 884-152
upper tool for press-in, for DIN male connector B/3
Press-fit tool for DIN female connector C Part No. 884-200
upper tool for press-in, for DIN female connector C
Press-fit tool for DIN female connector C/2 Part No. 884-201
upper tool for press-in, for DIN female connector C/2
Press-fit tool for DIN male connector C Part No. 884-250
upper tool for press-in, for DIN male connector C
Press-fit tool for DIN male connector C/2 Part No. 884-251
upper tool for press-in, for DIN male connector C/2
Press-fit tool for DIN male connector C/3 Part No. 884-252
upper tool for press-in, for DIN male connector C/3
Press-fit tool for DIN male connector C Part No. 884-260
upper tool for press-in, for DIN male connector C
Press-fit tool for DIN male connector C/2 Part No. 884-261
upper tool for press-in, for DIN male connector C/2
Press-fit tool for DIN male connector C/3 Part No. 884-262
upper tool for press-in, for DIN male connector C/3
Press-fit tool for DIN female connector D Part No. 884-303
upper tool for press-in, for DIN female connector D
Press-fit tool for DIN female connector E Part No. 884-353
upper tool for press-in, for DIN female connector E
Press-fit tool for DIN female connector F Part No. 884-401
upper tool for press-in, for DIN female connector F
Press-fit tool for DIN female connector F-low Part No. 884-406
upper tool for press-in, for DIN female connector F-low
Press-fit tool for DIN female connector G-low Part No. 884-451
upper tool for press-in, for DIN female connector G-low
Press-fit tool for DIN female connector G Part No. 884-453
upper tool for press-in, for DIN female connector G

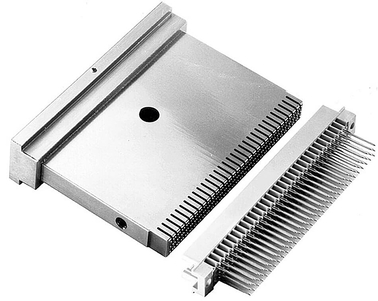

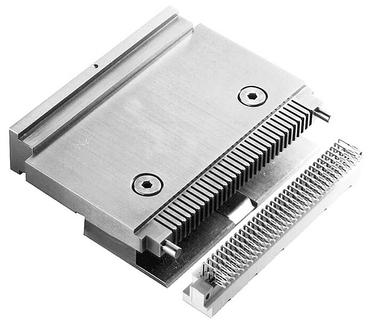

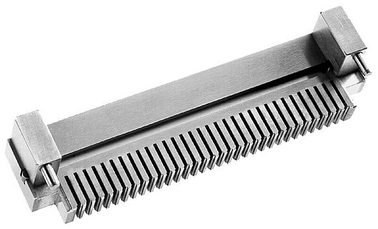

Press-fit tool for DIN female connector R Part No. 884-500
upper tool for press-in, for DIN female connector R
Press-fit tool for DIN female connector R/2 Part No. 884-501
upper tool for press-in, for DIN female connector R/2
Press-fit tool for DIN female connector R/2 Part No. 884-502
upper tool for press-in, for DIN female connector R/2
Press-fit tool for DIN female connector R Part No. 884-503
upper tool for press-in, for DIN female connector R
Press-fit tool for DIN female connector R/3 Part No. 884-504
upper tool for press-in, for DIN female connector R/3
Press-fit tool for DIN male connector R Part No. 884-525
upper tool for press-in, for DIN male connector R
Press-fit tool for DIN male connector R/2 Part No. 884-526
upper tool for press-in, for DIN male connector R/2
Press-fit tool for DIN male connector R/3 Part No. 884-527
upper tool for press-in, for DIN male connector R/3
Press-fit tool for DIN female connector M Part No. 884-540-W24
upper tool for press-in, for DIN female connector M
Press-fit tool for DIN female connector M Part No. 884-540-W42
upper tool for press-in, for DIN female connector M
Press-fit tool for DIN female connector M Part No. 884-540-W6
upper tool for press-in, for DIN female connector M
Press-fit tool for DIN female connector M Part No. 884-540-W60
upper tool for press-in, for DIN female connector M
Press-fit tool for DIN female connector M Part No. 884-540-W78
upper tool for press-in, for DIN female connector M
Press-fit tool for DIN female connector M/2 Part No. 884-541
upper tool for press-in, for DIN female connector M/2
Press-fit tool for DIN female connector M/2 Part No. 884-542
upper tool for press-in, for DIN female connector M/2
Press-fit tool for DIN female connector B, C, C/2, C/3, VME64x, PC104 female connector Part No. 886-900-W1
upper tool for press-in, for DIN female connector B, C, C/2, C/3, VME64x, PC104 female connector

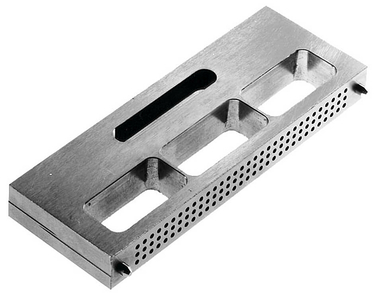

DIN support tool
DIN 41612 Modular support tool pitch 2.54 Part No. 890-100-W1
support tool for stabilizing the PCB, modular support tool pitch 2.54
Support tool for DIN female connector M Part No. 890-112-W24
support tool for stabilizing the PCB, for DIN female connector M
Support tool for DIN female connector M Part No. 890-112-W42
support tool for stabilizing the PCB, for DIN female connector M
Support tool for DIN female connector M Part No. 890-112-W6
support tool for stabilizing the PCB, for DIN female connector M
Support tool for DIN female connector M Part No. 890-112-W60
support tool for stabilizing the PCB, for DIN female connector M
Support tool for DIN female connector M Part No. 890-112-W78
support tool for stabilizing the PCB, for DIN female connector M
Support tool for DIN female connector M/2 Part No. 890-113
support tool for stabilizing the PCB, for DIN female connector M/2
Support tool for DIN female connector M/2 Part No. 890-114
support tool for stabilizing the PCB, for DIN female connector M/2
Support tool for DIN male connector B Part No. 890-302
support tool for stabilizing the PCB, for DIN male connector B
Support tool for DIN male connector B/2 Part No. 890-303
support tool for stabilizing the PCB, for DIN male connector B/2
Support tool for DIN male connector B/3 Part No. 890-304
support tool for stabilizing the PCB, for DIN male connector B/3
Support tool for DIN female connector R, male connector C Part No. 890-305
support tool for stabilizing the PCB, for DIN female connector R, male connector C
Support tool for DIN female connector R/2, male connector C/2 Part No. 890-306
support tool for stabilizing the PCB, for DIN female connector R/2, male connector C/2
Support tool for DIN female connector R/3, male connector C/3 Part No. 890-307
support tool for stabilizing the PCB, for DIN female connector R/3, male connector C/3
Support tool for DIN female connector C, male connector R Part No. 890-317
support tool for stabilizing the PCB, for DIN female connector C, male connector R
Support tool for DIN female connector C/2 Part No. 890-331
support tool for stabilizing the PCB, for DIN female connector C/2
Support tool for DIN female connector C/3 Part No. 890-332
support tool for stabilizing the PCB, for DIN female connector C/3
Support tool for DIN female connector B Part No. 890-333
support tool for stabilizing the PCB, for DIN female connector B
Support tool for DIN female connector B/2 Part No. 890-334
support tool for stabilizing the PCB, for DIN female connector B/2
Support tool for DIN female connector B/3 Part No. 890-335
support tool for stabilizing the PCB, for DIN female connector B/3
Support tool for DIN male connector R/3 Part No. 890-336
support tool for stabilizing the PCB, for DIN male connector R/3
Support tool for DIN male connector R/2 Part No. 890-348
support tool for stabilizing the PCB, for DIN male connector R/2
DIN accessories

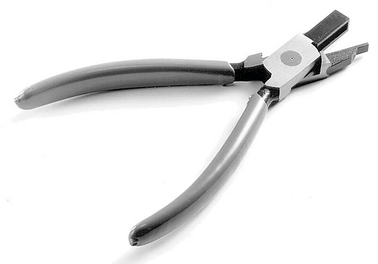

DIN 41612 Coding pliers Part No. 894-301
for breaking-out of coding

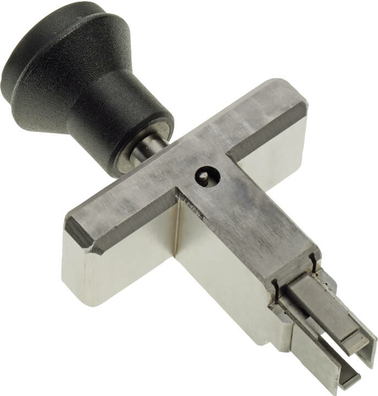

DIN 41612 Insertion tool coding pin D, E, F and G Part No. 894-302
for insertion of coding pin
VarPol press-fit tool

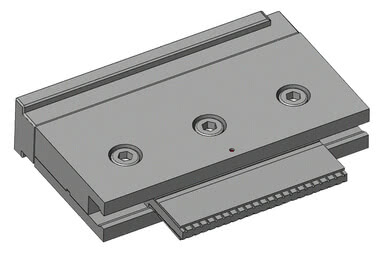

Press-fit tool for VarPol pin header 1row Part No. 886-461-xx
upper tool for press-in, for VarPol pin header 1row
Press-fit tool for VarPol pin header 2row Part No. 886-462-xx
upper tool for press-in, for VarPol pin header 2row
Press-fit tool for VarPol pin header 90° 1row Part No. 886-471-xx
upper tool for press-in, for VarPol pin header 90° 1row
Press-fit tool for VarPol pin header 90° 2row Part No. 886-472-xx
upper tool for press-in, for VarPol pin header 90° 2row
Press-fit tool for VarPol female connector 1row and 2row Part No. 886-900
upper tool for press-in, for VarPol female connector 1row and 2row
VarPol support tool

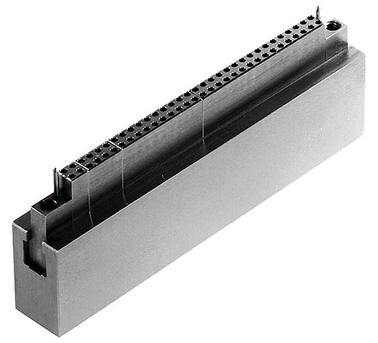

Support tool for VarPol pin header and female connector 2row Part No. 890-323
support tool for stabilizing the PCB, for VarPol pin header and female connector 2row
Support tool for VarPol pin header and female connector Part No. 890-330
support tool for stabilizing the PCB, for VarPol pin header and female connector
PC/104-Plus press-fit tool

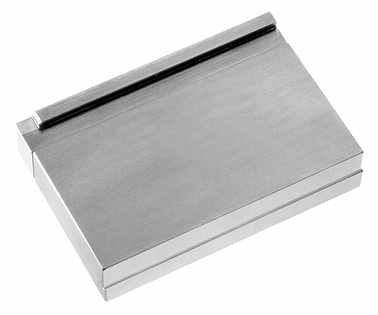

Press-fit tool for PC/104-Plus female connector Part No. 886-900-W3
upper tool for press-in, for PC/104-Plus female connector
Press-fit tool for PC/104-Plus female connector Part No. 886-900-W5
upper tool for press-in, for PC/104-Plus female connector

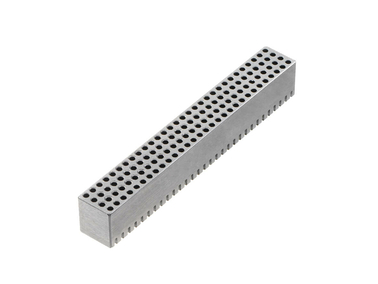

Press-fit tool for PC/104-Plus pin header Part No. 886-903-W1
upper tool for press-in, for PC/104-Plus pin header
PC/104-Plus support tool

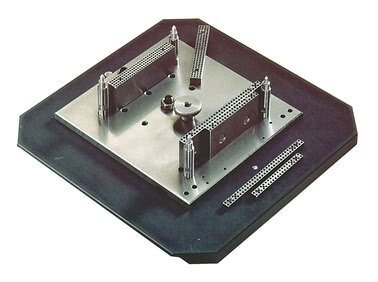

Support tool for PC/104 and PC104-Plus female connector Part No. 890-602-W1
support tool for stabilizing the PCB, for PC/104 female connector, for PC/104-Plus female connector
MTCA press-fit tool

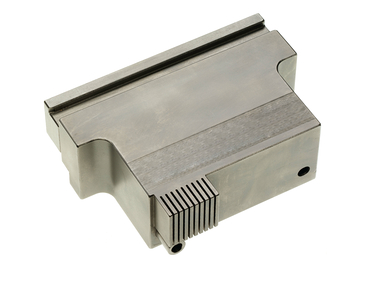

Press-fit tool for MTCA Power Part No. 884-044-W1
upper tool for press-in, for MTCA Power
Press-fit tool for MTCA Power Part No. 884-045-W1
upper tool for press-in, for MTCA Power

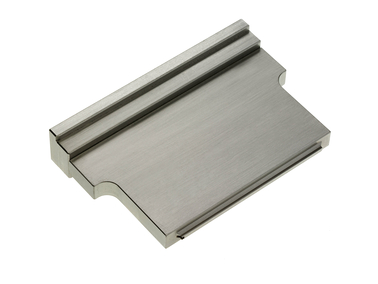

Press-fit tool for MTCA AMC Part No. 884-046-W1
upper tool for press-in, for MTCA AMC
MTCA support tool

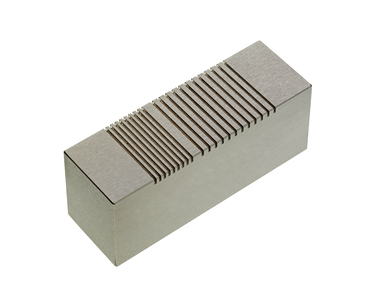

Support tool for MTCA Power Part No. 890-044-W1
support tool for stabilizing the PCB, for MTCA Power
Support tool for MTCA Power Part No. 890-045-W1
support tool for stabilizing the PCB, for MTCA Power

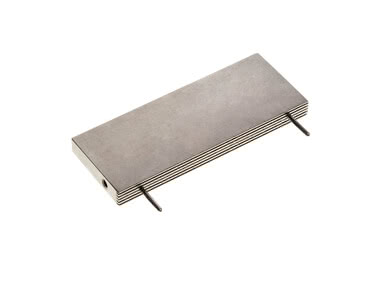

Support tool for MTCA AMC Part No. 890-046-W1
support tool for stabilizing the PCB, for MTCA AMC
ATCA press-fit tool

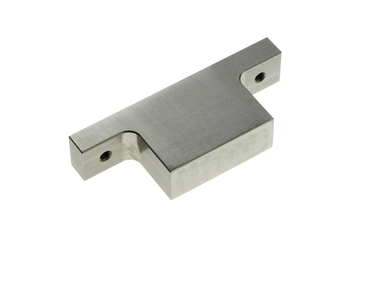

Press-fit tool for ATCA Power Part No. 884-050-W1
upper tool for press-in, for AdvancedTCA® Power
Press-fit tool for ATCA Power Part No. 884-051-W1
upper tool for press-in, for AdvancedTCA® Power

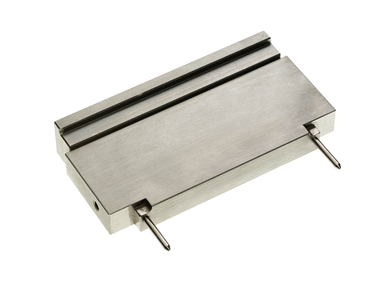

Press-fit tool for ATCA B+ Part No. 886-115-W21
upper tool for press-in, for AdvancedTCA® Signal B+
ATCA support tool
Support tool for ATCA Power Part No. 890-050-W1
support tool for stabilizing the PCB, for AdvancedTCA® Power
Support tool for ATCA Power Part No. 890-051-W1
support tool for stabilizing the PCB, for AdvancedTCA® Power
Support tool for ATCA B+ Part No. 890-115-W21
support tool for stabilizing the PCB, for AdvancedTCA® Signal B+

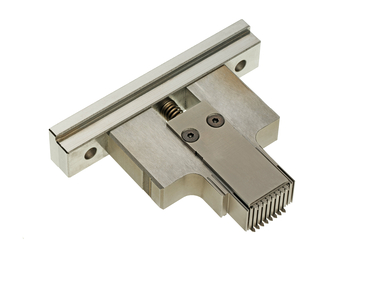

hm2.0 press-fit tool

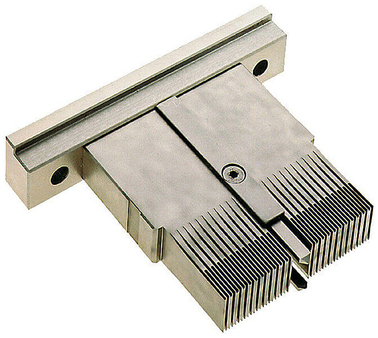

Press-fit tool for hm2.0 male connector A Part No. 884-700-W25
upper tool for press-in, for hm 2.0 male connector A

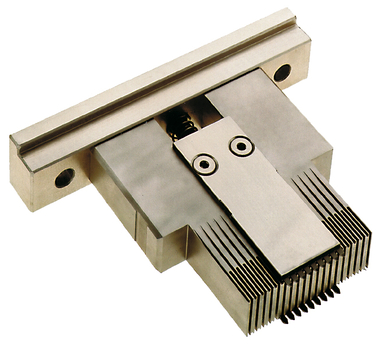

Press-fit tool for hm2.0 male connector B19 Part No. 884-701-W19
upper tool for press-in, for hm 2.0 male connector B19
Press-fit tool for hm2.0 male connector B22 Part No. 884-701-W22
upper tool for press-in, for hm 2.0 male connector B22
Press-fit tool for hm2.0 male connector B Part No. 884-701-W25
upper tool for press-in, for hm 2.0 male connector B
Press-fit tool for hm2.0 male connector C Part No. 884-702-W11
upper tool for press-in, for hm 2.0 male connector C
Press-fit tool for hm2.0 male connector L Part No. 884-707-W1
upper tool for press-in, for hm 2.0 male connector L
Press-fit tool for hm2.0 male connector M Part No. 884-707-W2
upper tool for press-in, for hm 2.0 male connector M
Press-fit tool for hm2.0 male connector N Part No. 884-707-W3
upper tool for press-in, for hm 2.0 male connector N

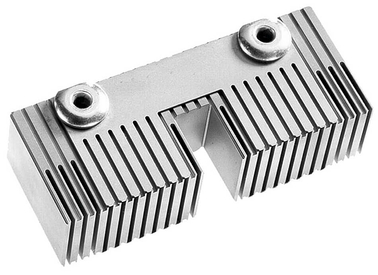

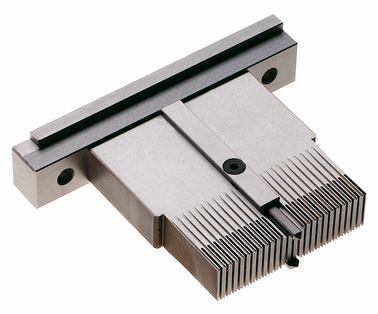

Press-fit tool for hm2.0 male connector AB19 Part No. 884-708-W19
upper tool for press-in, for hm 2.0 male connector AB19

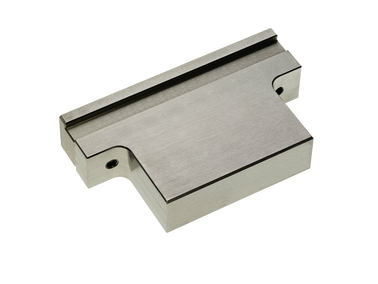

Press-fit tool for hm2.0 male connector AB22 Part No. 884-708-W22
upper tool for press-in, for hm 2.0 male connector AB22
Press-fit tool for hm2.0 male connector AB Part No. 884-708-W25
upper tool for press-in, for hm 2.0 male connector AB
Press-fit tool for hm2.0 male connector D Part No. 884-710-W25
upper tool for press-in, for hm 2.0 male connector D
Press-fit tool for hm2.0 male connector E Part No. 884-711-W25
upper tool for press-in, for hm 2.0 male connector E
Press-fit tool for hm2.0 male connector DE Part No. 884-712-W25
upper tool for press-in, for hm 2.0 male connector DE
Press-fit tool for hm2.0 male connector F Part No. 884-713-W11
upper tool for press-in, for hm 2.0 male connector F
Press-fit tool for hm2.0 female connector C, N Part No. 884-720-W11
upper tool for press-in, for hm 2.0 female connector C, N
Press-fit tool for hm2.0 female connector AB19, B19 Part No. 884-720-W19
upper tool for press-in, for hm 2.0 female connector AB19, B19
Press-fit tool for hm2.0 female connector AB22, B22 Part No. 884-720-W22
upper tool for press-in, for hm 2.0 female connector AB22, B22
Press-fit tool for hm2.0 female connector A, AB, B, L, M Part No. 884-720-W25
upper tool for press-in, for hm 2.0 female connector A, AB, B, L, M
Press-fit tool for hm2.0 female connector F Part No. 884-730-W11
upper tool for press-in, for hm 2.0 female connector F
Press-fit tool for hm2.0 female connector D, DE, E Part No. 884-730-W25
upper tool for press-in, for hm 2.0 female connector D, DE, E
Press-fit tool for hm2.0 lower shield 5 row Part No. 884-740-W2
tool for hm 2.0 lower shield 5 row
Press-fit tool for hm2.0 lower shield 8 row Part No. 884-740-W3
tool for hm 2.0 lower shield 8 row
hm2.0 press-fit tool flat Rock
Press-fit tool for hm2.0 male connector A Part No. 884-700-W125
inserting tool for press-in, for hm 2.0 male connector A
Press-fit tool for hm2.0 male connector B19 Part No. 884-701-W119
inserting tool for press-in, for hm 2.0 male connector B19
Press-fit tool for hm2.0 male connector B22 Part No. 884-701-W122
inserting tool for press-in, for hm 2.0 male connector B22
Press-fit tool for hm2.0 male connector B Part No. 884-701-W125
inserting tool for press-in, for hm 2.0 male connector B
Press-fit tool for hm2.0 male connector C Part No. 884-702-W111
inserting tool for press-in, for hm 2.0 male connector C
Press-fit tool for hm2.0 male connector AB19 Part No. 884-708-W119
inserting tool for press-in, for hm 2.0 male connector AB19
Press-fit tool for hm2.0 male connector AB22 Part No. 884-708-W122
inserting tool for press-in, for hm 2.0 male connector AB22
Press-fit tool for hm2.0 male connector AB Part No. 884-708-W125
inserting tool for press-in, for hm 2.0 male connector AB
Press-fit tool for hm2.0 male connector D Part No. 884-710-W125
inserting tool for press-in, for hm 2.0 male connector D
Press-fit tool for hm2.0 male connector E Part No. 884-711-W125
inserting tool for press-in, for hm 2.0 male connector E
Press-fit tool for hm2.0 male connector DE Part No. 884-712-W125
inserting tool for press-in, for hm 2.0 male connector DE
Press-fit tool for hm2.0 male connector F Part No. 884-713-W111
inserting tool for press-in, for hm 2.0 male connector F
hm2.0 support tool
Support tool for hm2.0 male connector A Part No. 890-700-W25
support tool for stabilizing the PCB, for hm 2.0 male connector A
Support tool for hm2.0 male connector AB19, B19 Part No. 890-701-W19
support tool for stabilizing the PCB, for hm 2.0 male connector AB19, B19
Support tool for hm2.0 male connector AB22, B22 Part No. 890-701-W22
support tool for stabilizing the PCB, for hm 2.0 male connector AB22, B22
Support tool for hm2.0 male connector AB, B Part No. 890-701-W25
support tool for stabilizing the PCB, for hm 2.0 male connector AB, B
Support tool for hm2.0 male connector C Part No. 890-702-W11
support tool for stabilizing the PCB, for hm 2.0 male connector C
hm2.0 Modular support tool pitch 2.0 Part No. 890-705-W50
support tool for stabilizing the PCB, modular support tool pitch 2.0, for connectors with 2 mm pitch
Support tool for hm2.0 male connector D Part No. 890-710-W25
support tool for stabilizing the PCB, for hm 2.0 male connector D
Support tool for hm2.0 female connector D Part No. 890-710-W25/1
support tool for stabilizing the PCB, for hm 2.0 female connector D
Support tool for hm2.0 male connector DE, E Part No. 890-711-W25
support tool for stabilizing the PCB, for hm 2.0 male connector DE, E
Support tool for hm2.0 female connector E Part No. 890-711-W25/1
support tool for stabilizing the PCB, for hm 2.0 female connector E
Support tool for hm2.0 male connector F Part No. 890-713-W11
support tool for stabilizing the PCB, for hm 2.0 male connector F
Support tool for hm2.0 female connector F Part No. 890-713-W11/3
support tool for stabilizing the PCB, for hm 2.0 female connector F
Support tool for hm2.0 female connector C Part No. 890-720-W11
support tool for stabilizing the PCB, for hm 2.0 female connector C
Support tool for hm2.0 female connector AB19, B19 Part No. 890-720-W19
support tool for stabilizing the PCB, for hm 2.0 female connector AB19, B19
Support tool for hm2.0 female connector AB22, B22 Part No. 890-720-W22
support tool for stabilizing the PCB, for hm 2.0 female connector AB22, B22
Support tool for hm2.0 female connector A, AB, B Part No. 890-720-W25
support tool for stabilizing the PCB, for hm 2.0 female connector A, AB, B
Support tool for hm2.0 female connector DE Part No. 890-731-W25
support tool for stabilizing the PCB, for hm 2.0 female connector DE
hm2.0 accessories
hm2.0 male single pin set tool Part No. 892-701-W1
single pin insertion tool for male connectors
Removal tool for hm2.0 shroud Part No. 892-702-W1
removal tool for shroud
hm2.0 set tool for coding male 5+2 Part No. 892-703-W1
set tool for male coding, for type A, L, M
Velox press-fit tool
Press-fit tool for Velox center, 16-left, 16-right Part No. 884-055-W1
upper tool for press-in, for Velox center, 16-left, 16-right
Press-fit tool for Velox 8-left Part No. 884-057-W1
upper tool for press-in, for Velox 8-left
Velox support tool
Support tool for Velox center, 16-left, 16-right Part No. 890-056-W1
support tool for stabilizing the PCB, for Velox center, 16-left, 16-right
Support tool for Velox 8-left Part No. 890-058-W1
support tool for stabilizing the PCB, for Velox 8-left
Velox support tool (rear)
Support tool for Velox center, 16-left, 16-right Part No. 890-055-W1
support tool for stabilizing the PCB, for Velox center, 16-left, 16-right
Support tool for Velox 8-left Part No. 890-057-W1
support tool for stabilizing the PCB, for Velox 8-left
Power Terminals press-fit tool
Press-fit tool for Power Terminals Part No. 886-601
upper tool for press-in, for Power Terminals
Press-fit tool for Power Terminals Part No. 886-601-1
upper tool for press-in, for Power Terminals
Press-fit tool for Power Terminals Part No. 886-604
upper tool for press-in, for Power Terminals
