The plug-in system in practice:

Battery management requires a highly complex control unit with numerous components for charging and discharging the battery cells and monitoring them safely. This is accompanied by an increasing degree of miniaturization.

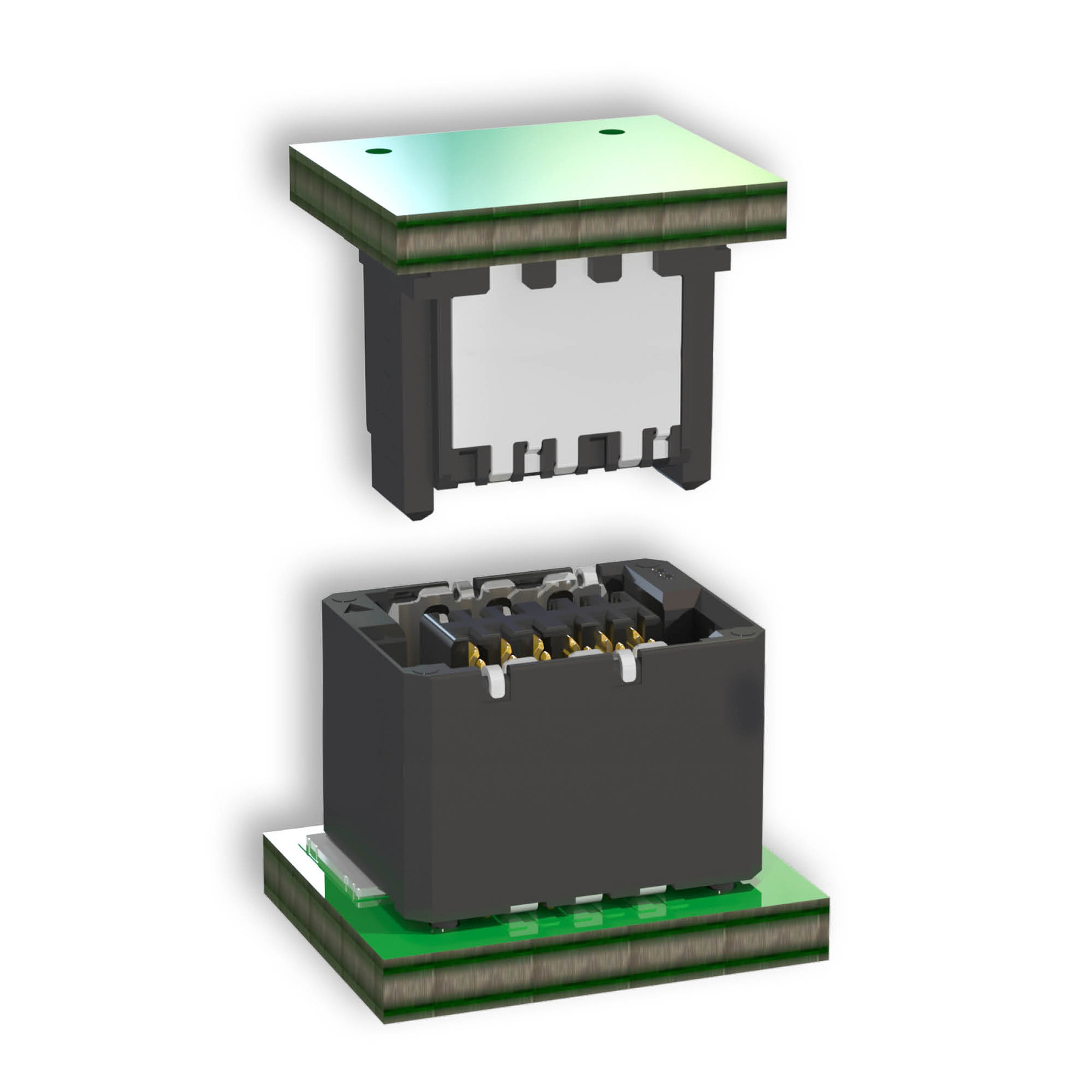

The Solution - Zero8 Connectors:

With a stack height of 6 mm and a pitch of 0.8 mm, the Zero8 connector is a space-saving interconnect solution that conserves significant space on the printed circuit board (PCB).

For more information about the Zero8, click here:

One27 Product Information

Overview:

All the benefits

Space-saving
Secure, robust, gas-tight connections
Full flexibility
Fully scalable
High tolerance compensation
Miniaturized with a 0.8 mm pitch
Shielded on
both sides High data transfer rates of up to 16 Gbit/s

Features / Highlights:

Pitch: 0.8 mm
Operating current: 1.7 A
500 mating cycles
Optimized misinsertion protection
Packaged in tape & reel
