High-Speed SMT PCB connector for applications with 25+ Gbit/s
Colibri® is a shielded, dual-row SMT connector system with a 0.5 mm pitch.
Features
- Complies with PICMG COM Express®
- and SFF-SIG CoreExpress® requirements
- Compatible with standard connectors
- for applications with 10+, 16+, or 25+ Gbps
- Integrated mounting area
- Packaged in tape and reel
Applications
- COM Express®
- CoreExpress®
- Mezzanine board-to-board
- VITA59
Colibri®: Overview
Filter
Plug 10+
Colibri Plug 220, 5 mm Part No. 401-51101-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed

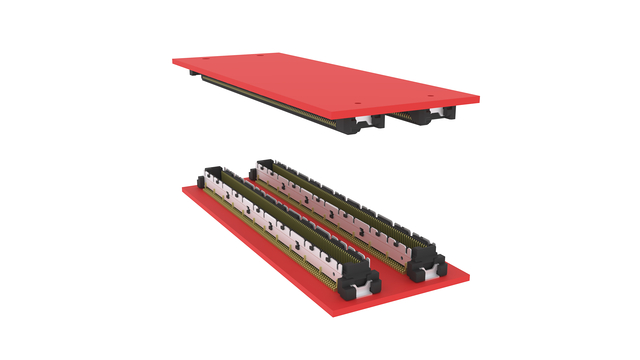

Colibri Plug 440, 5 mm Part No. 401-51501-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 220, 8 mm Part No. 401-55101-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 440, 8 mm Part No. 401-55501-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 120, 8 mm Part No. 401-55401-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 120, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 120, 5 mm Part No. 401-51401-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 120, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 40, 5 mm Part No. 401-51701-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 40, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 40, 8 mm Part No. 401-55701-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 40, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 160, 5 mm Part No. 401-51301-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 160, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 80, 5 mm Part No. 401-51601-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 80, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 160, 8 mm Part No. 401-55301-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 160, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Colibri Plug 80, 8 mm Part No. 401-55601-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 80, SMT Connectivity, Grid: 0.5 mm, Data transfer rate: 10+ Gbps
Parallel
SMT
High Density
High Speed
Plug 16+
Colibri Plug 16+ 220, 5 mm Part No. 401-51103-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 440, 5 mm Part No. 401-51503-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 220, 8 mm Part No. 401-55103-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 440, 8 mm Part No. 401-55503-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 160, 5 mm Part No. 401-51303-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 160, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 120, 5 mm Part No. 401-51403-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 120, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 80, 5 mm Part No. 401-51603-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 80, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 40, 5 mm Part No. 401-51703-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 40, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 160, 8 mm Part No. 401-55303-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 160, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 120, 8 mm Part No. 401-55403-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 120, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 80, 8 mm Part No. 401-55603-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 80, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Colibri Plug 16+ 40, 8 mm Part No. 401-55703-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 40, SMT Connectivity, Grid: 0.5 mm, Data transfer rate of 16+ Gbps for PCIe Gen4
Parallel
SMT
High Density
High Speed
Plug 25+
Colibri Plug 25+ 220, 5 mm Part No. 401-51104-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rates of 25+ Gbps for PCIe Gen 4, 25 Gbps Ethernet, and USB4
Parallel
SMT
High Density
High Speed
Colibri Plug 25+ 440, 5 mm Part No. 401-51504-51
for 5 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rates of 25+ Gbps for PCIe Gen 4, 25 Gbps Ethernet, and USB4
Parallel
SMT
High Density
High Speed
Colibri Plug 25+ 220, 8 mm Part No. 401-55104-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rates of 25+ Gbps for PCIe Gen 4, 25 Gbps Ethernet, and USB4
Parallel
SMT
High Density
High Speed
Colibri Plug 25+ 440, 8 mm Part No. 401-55504-51
for 8 mm PCB spacing, Overlap tolerance up to +0.6 mm, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rates of 25+ Gbps for PCIe Gen 4, 25 Gbps Ethernet, and USB4
Parallel
SMT
High Density
High Speed
Receptacle
Colibri Receptacle 220 Part No. 402-51101-51
for all PCB pitch sizes, Number of poles: 220, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps, for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Colibri Receptacle 440 Part No. 402-51501-51
for all PCB pitch sizes, Number of poles: 440, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps , for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Colibri Receptacle 120 Part No. 402-51401-51
for all PCB pitch sizes, Number of poles: 120, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps , for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Colibri Receptacle 160 Part No. 402-51301-51
for all PCB pitch sizes, Number of poles: 160, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps , for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Colibri Receptacle 80 Part No. 402-51601-51
for all PCB pitch sizes, Number of poles: 80, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps , for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Colibri Receptacle 40 Part No. 402-51701-51
for all PCB pitch sizes, Number of poles: 40, SMT Connectivity, Grid: 0.5 mm, Data transfer rate up to 25+ Gbps , for PCIe Gen 4
Parallel
SMT
High Density
High Speed
Plug-Heavy Au
Receptacle, Heavy Au
Other number of contacts? Other stacking heights? alternative plating? Individual assembly? Lagging contacts?
Highlights of the Colibri HighSpeed SMT connector
What do ept’s popular Colibri HighSpeed-connector offer? What board-to-board distances can be achieved with them? Are there different numbers of positions? How many Gbit/s are possible for data transmission?
Our animated video answers these questions and more. Check it out
now! (or on YouTube)!
Our animated video answers these questions and more. Check it out
now! (or on YouTube)!
PICMG connector Features
Colibri® is a shielded, dual-row SMT connector system with a 0.5 mm pitch. It meets all the requirements of the connector specifications set by PICMG COM Express®, SFF-SIG CoreExpress®, and nano-ETXexpress. Colibri® products are compatible with standard connectors on the market and have been extensively tested.
Overview of COM Module
Details
Carrier Board
Details at a Glance
We manufacture custom-fit, tailored connector for your application.
sales@eptusa.com a custom-connector quote
now
- Other numbers of positions
- Other stack heights
- Alternative contact plating
sales@eptusa.com a custom-connector quote
now
The COM Express Standard for connector
The COM Express® specification for connectors was developed by the PICMG for computer-on-module (COM). Among other things, it specifies the dimensions the module must have and the locations of the mounting holes and contact assignments relative to the carrier board.
COM Express® modules integrate the core functionalities of a bootable PC, such as the CPU, graphics processor, RAM, and standard interfaces.
Plugging a COM module onto a carrier board reduces development time and costs. Furthermore, the product lifecycle can not only be extended but also upgraded by plugging newer, higher-performance COM Express® modules onto the carrier board.
COM Express® modules integrate the core functionalities of a bootable PC, such as the CPU, graphics processor, RAM, and standard interfaces.
Plugging a COM module onto a carrier board reduces development time and costs. Furthermore, the product lifecycle can not only be extended but also upgraded by plugging newer, higher-performance COM Express® modules onto the carrier board.
The COM Express® module sizes for connector according to PICMG
Typical applications for Colibri HighSpeed connector
- Industrial Automation
- , Kiosk & POS Systems
- , medical technology,
- Messtechnik
- , Gaming
- , Transportation
- , Server
PICMG Colibri connector for COM Express
“Time and again, we heard from hardware developers that the demands on high-speed connectors have increased and that they therefore need SMT capable of handling more than 8 Gbit/s. For a long time, the 10 Gbit/s version of our Colibri SMT connectors has already impressed with its outstanding signal integrity. With the Colibri 16+ and 25+ Gbit/s versions, we enable interference-free data transmission of USB 3.1 Gen2 and PCI Express 4.0 signals.
Our Colibri SMT connectors for COM Express applications feature an optimized contact design, making it easy to implement high-speed connector applications at 10, 16, or 25+ Gbit/s and beyond. Our simulations demonstrate excellent signal integrity—even at high data rates. I am absolutely convinced of the high-speed capabilities of our Colibri COM Express connector. You should take a look at the features yourself and order at least one sample!
You can also request S-parameter from us to simulate your own designs."
Florian Guglhör, Product Manager at ept
Our Colibri SMT connectors for COM Express applications feature an optimized contact design, making it easy to implement high-speed connector applications at 10, 16, or 25+ Gbit/s and beyond. Our simulations demonstrate excellent signal integrity—even at high data rates. I am absolutely convinced of the high-speed capabilities of our Colibri COM Express connector. You should take a look at the features yourself and order at least one sample!
You can also request S-parameter from us to simulate your own designs."
Florian Guglhör, Product Manager at ept
FAQ: Questions and Answers About the Colibri SMT - connector
For which data rates are Colibri SMT-connector suitable?For which high-speed applications are Colibri connector used?Where are Colibri connector compliant with PICMG standards already being used successfully?Is an assembly aid (assembly cap) required for processing Colibri high-speed connectors?Are the PICMG Colibri connector also available in tape-and-reel packaging?Are Colibri COM Express connector UL-recognized components?Are the ept PCB connector RoHS-compliant?
For which data rates are Colibri SMT-connector suitable?
Simulations using the COM Express® connector system Colibri® at 8 and 10 Gbit/s demonstrate excellent signal integrity. Through further developments and improvements to the contact design, the high-speed capabilities of the Colibri Plugs have been expanded to 25+ Gbit/s. This makes the COM Express connector system the top choice for your application requiring high data rates of 25 Gbit/s and above.
For which high-speed applications are Colibri connector used?
Colibri Speed-connector are ideal for high data rates and thus for any type of high-speed application. These include, for example, COM Express and Mezzanine board-to-board systems with data rates for 10-Gigabit Ethernet and PCI Express Gen3.
Where are Colibri connector compliant with PICMG standards already being used successfully?
Among other applications, Colibri COM Express connector are already used in industrial automation, kiosk and POS systems, medical medical technology, measurement technology, gaming, the transportation sector, and building medical technology.
Is an assembly aid (assembly cap) required for processing Colibri high-speed connectors?
The design of the Colibri Receptacle provides sufficient pick-up area for the vacuum nozzle and therefore requires no additional assembly cap.
The Colibri Plug can also be reliably populated using a narrow vacuum nozzle without an additional assembly cap.
Are the PICMG Colibri connector also available in tape-and-reel packaging?
Yes, Colibri SMT connector are regularly shipped in tape and reel packaging, which enables fully automated processing via pick-and-place. Delivery in tray packaging is also available upon request.
Are Colibri COM Express connector UL-recognized components?
Yes, Colibri connector from ept are UL-recognized components in the U.S. and Canada.
Are the ept PCB connector RoHS-compliant?
RoHS (Restriction of the Use of Certain Hazardous Substances) is the directive restricting the use of certain hazardous substances in electrical and electronic equipment.
We confirm that Colibri connector from ept are compliant with RoHS Directive 2011/65/EU, as per the RoHS certificate. For more information, see RoHS & REACH.
Testimonials
We respect our clients’ desire for discretion and therefore do not cite any sources below.
However, we unconditionally guarantee the authenticity of these statements.
However, we unconditionally guarantee the authenticity of these statements.
In applications with very high data rates, the Colibri 10 Gbit/s occasionally reached its limits; however, with the new Plug 16+, USB 3.1 Gen2 signal transmissions now work without any problems.
A key factor for us was that ept’s COM Express Express-connector exhibit the best performance in eye diagrams (jitter, eye height, and eye width).
By using tape-and-reel packaging for Colibri® connectors, we were able to increase the autonomous operation time of the placement machine and thus reduce production costs.
For our 10 Gbit/s application, we have approved only Colibri connector.
Only since we started using Colibri high-speed connector have we had absolutely no problems with wetting during reflow soldering.
The tape and reel packaging of the Colibri SMT-Leiterplatten-connector has significantly increased productivity in our manufacturing process.
The support provided by ept during the introduction of Colibri connector into our production process was excellent. We felt we were in good hands.
At ept, the availability of Colibri connector is guaranteed. That was extremely important to us.
