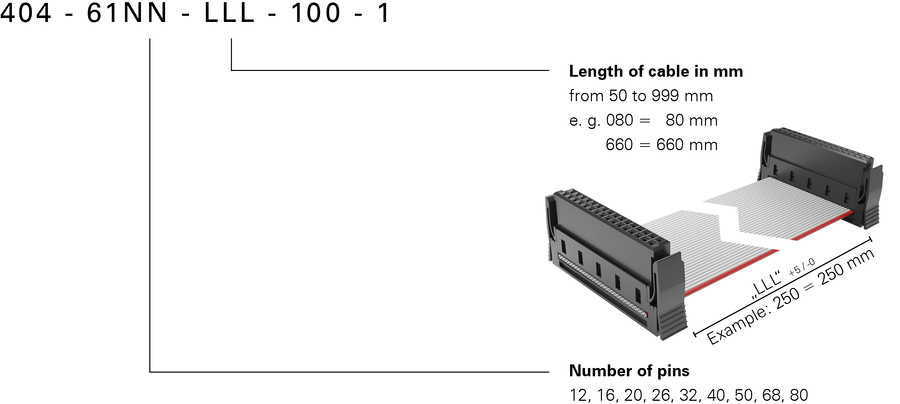

One27 cable assembly version 100 Part No. 404-61NN-LLL-100-1
Illustration similar
- 12 to 80 pins
- freely selectable cable length from 30 to 999 mm
- AWG 30/7 pitch ribbon cable 0.635 mm
- assembly in insulation displacement connectors (IDC)
- type of cable PVC: -30°C to +105°C (in idle state)
- colored lead on a1
Further Information
Delivery time
Basics
| No. of Contacts | 12 - 80 |
|---|---|
| Termination Technology | IDC |
| Operating Temperature Range | -30°C to + 105°C |
Material
| Insulator Material | LCP, UL 94 V-0 |
|---|---|
| CTI value IEC 60112 | 175 |
| Contact Material | Copper alloy |
| Plating | Au over PdNi over Ni |
Mechanical
| Pitch | 1.27 mm |
|---|---|
| Mating Force per Pin | ≤ 0.5 N |
| Separating Force per Pin | ≥ 0.1 N |
| Durability IEC 60512-9-1 | Performance level 1: 500 mating cycles |
Electrical
| Operational Current | 1.2 A at 25°C |
|---|---|
| Clearance and Creepage | min. 0.4 mm |
Approval / Compliance
| UL file | E130314 |
|---|---|
| Environment | RoHS compliant |
For details please download the drawings or contact ept directly.
Plated through-hole according to IEC 60352-5
Available on request
