SearchOne27 cable assembly version 130 Part No. 404-62NN-LLL-130-1
Illustration similar
Cable-to-Board
High Density
- 12 to 80 pins
- freely selectable cable length from 30 to 999 mm
- AWG 30/7 pitch ribbon cable 0.635 mm
- assembly in insulation displacement connectors (IDC)
- type of cable TPE-S: -55°C to +125°C (in idle state)
- colored lead on a1
Technical Specifications
Basics
| No. of Contacts | 12 - 80 |
|---|---|
| Termination Technology | IDC |
| Operating Temperature Range | -55°C to +125°C |
Material
| Insulator Material | LCP, UL 94 V-0 (female IDC) TPE-ET S (cable) |
|---|---|
| CTI value IEC 60112 | 175 (female IDC) |
| Contact Material | Copper alloy (female IDC) Copper tin plated (cable) |
| Plating | Au over PdNi over Ni (female IDC) |
Mechanical
| Pitch | 1.27 mm (female IDC) 0.635mm (cable) |
|---|---|
| Mating Force per Pin | ≤ 0.5 N |
| Separating Force per Pin | ≥ 0.1 N |
| Durability IEC 60512-9-1 | Performance level 1: 500 mating cycles |
Electrical
| Operational Current | 1.3 A at 25°C |
|---|---|
| Contact Resistance | Max. 354 Ω/km at 20°C (cable) |
| Clearance and Creepage | min. 0.4 mm |
Approval / Compliance
| UL file | E130314 & E493123 |
|---|---|
| Environment | RoHS compliant |
Modifications
Available on request
- other assembled versions
Packaging
ESD bag
10

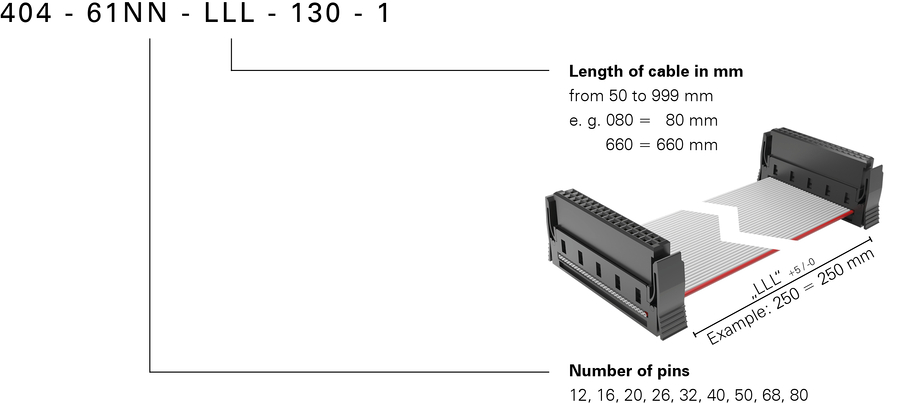

Product Key
