The Connector System in practice:
Power window units have been indispensable in modern vehicles for many years. An individual contact system is often required since many vehicles have integrated entirely individual PCBs.

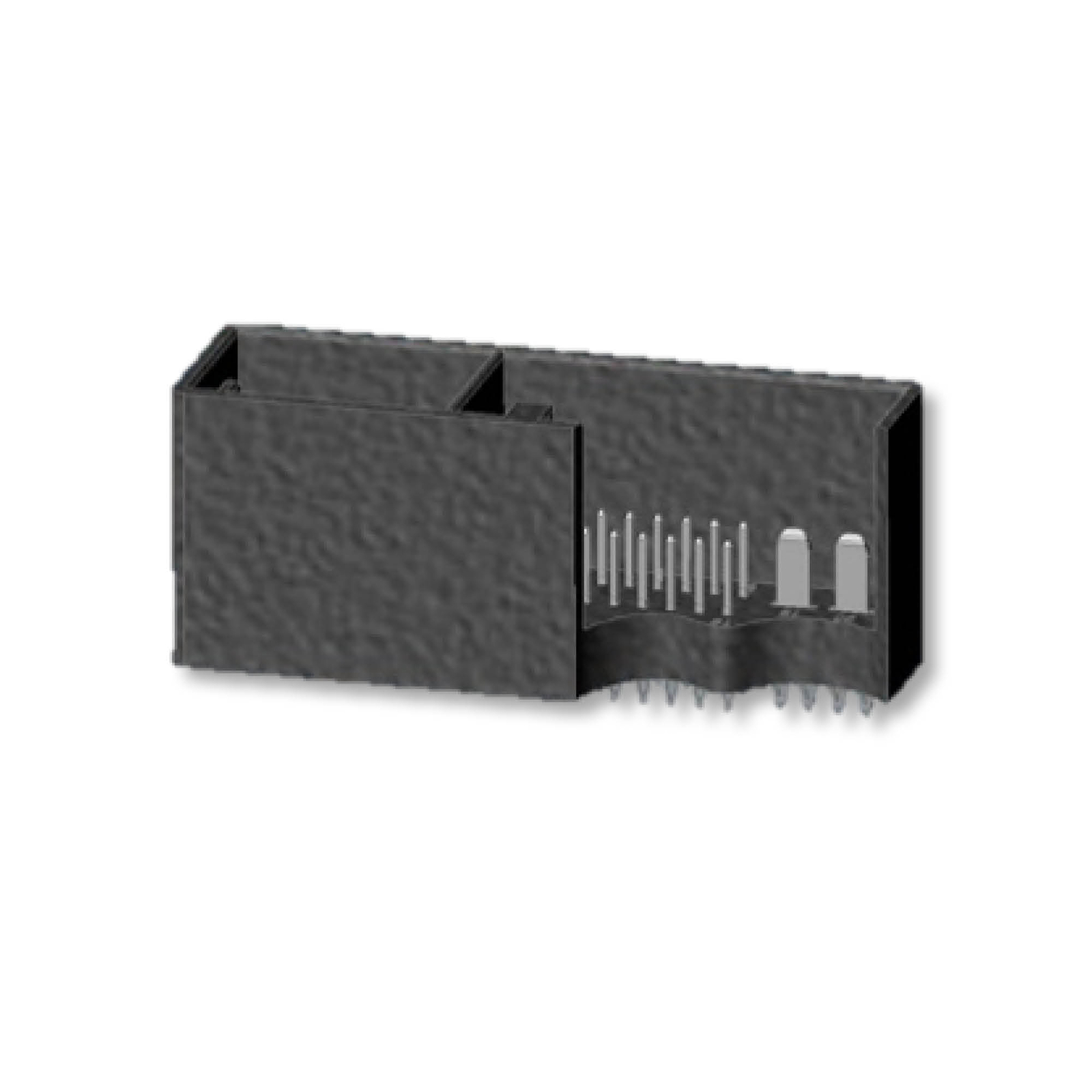

Our Solution - customized male connectors:
We supply a custom-fit, robust mechanical interface. The press-fit technology means that the solder joints are not damaged by mechanical stress.
Overview:
Benefits:
- Completely individual and custom-fit
- Robust interface due to press-fit technology
- Continuous project management (APQP)
- Fast and structured support
- Support with a high level of technical expertise
- On-time delivery
- Highest level of quality
Features / Highlights:
- Individual coding, printing, pin materials and colors
- A variety of surface coatings in the mating area (such as tin and gold)
- A variety of surface coatings in the press-fit area (such as tin and indium)
- Strip thicknesses from 0.4 to 1.2 mm
- 206 pins and more
- Compliance with purity specifications
- Compliance with interface specifications
- Several production sites
