Compact and sturdy PCB Connections in SMT

Board-to-board distances from 8 mm up to 13.8 mm can be achieved using One27 connectors from ept.
One27 Leiterplattenabstaende

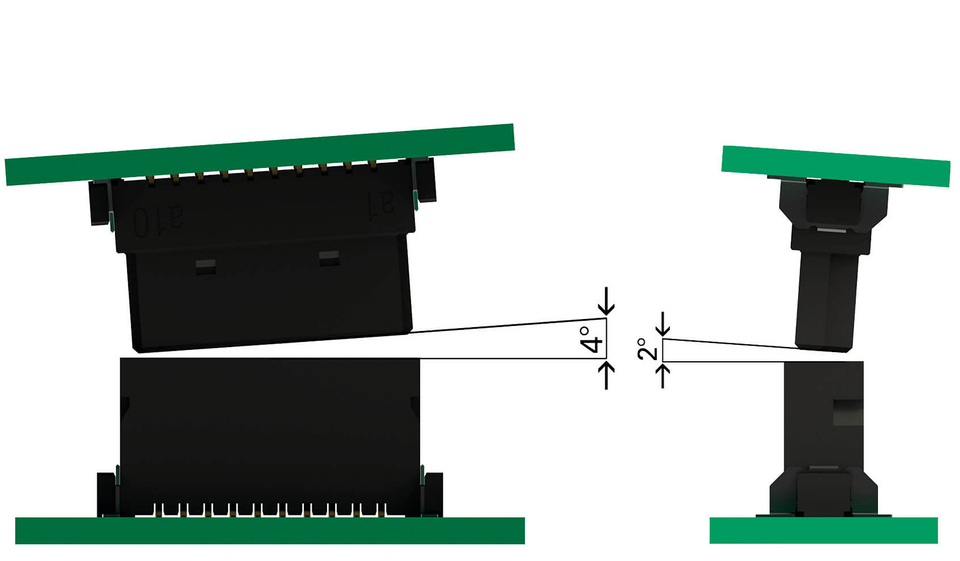

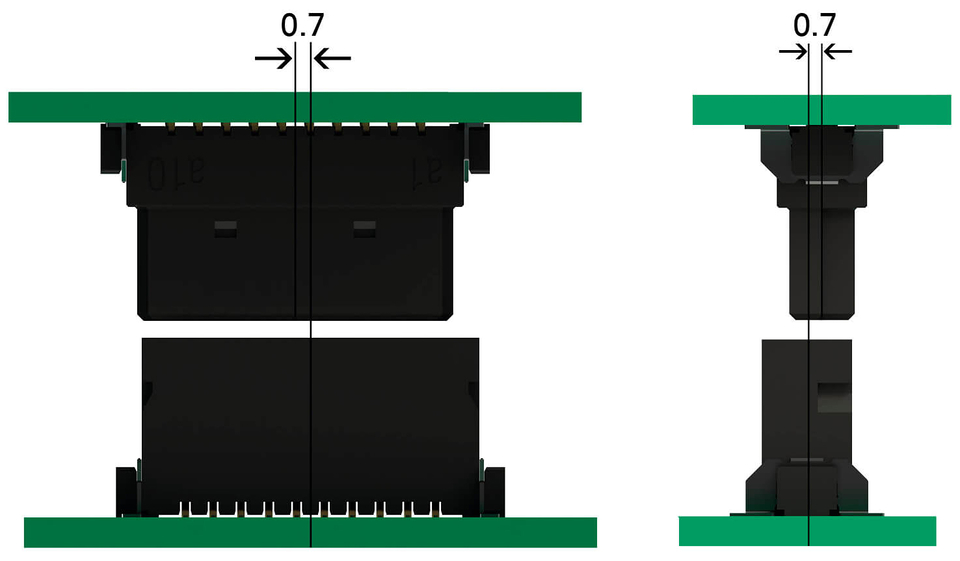

Features

  • 12 to 80 contacts
  • 1.4 A current carrying capacity
  • 500 mating cycles
  • Highest contact reliability
  • Compatibility with other suppliers has been tested
  • Female IDC available individually or assembled with cable
  • Packed in tape-and-reel

Applications

  • Board-to-board (mezzanine) distances ranging from 8 mm to 13.8 mm

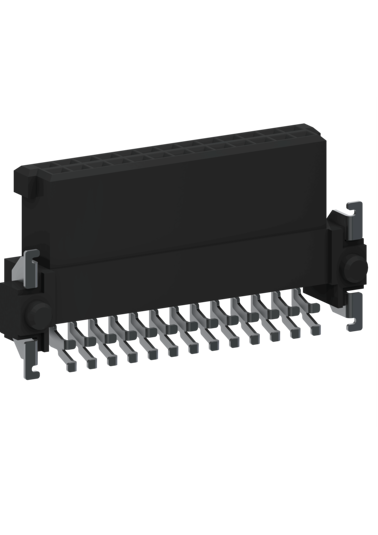

  • Parallel and perpendicular connections
  • IDC connectability with ribbon cable

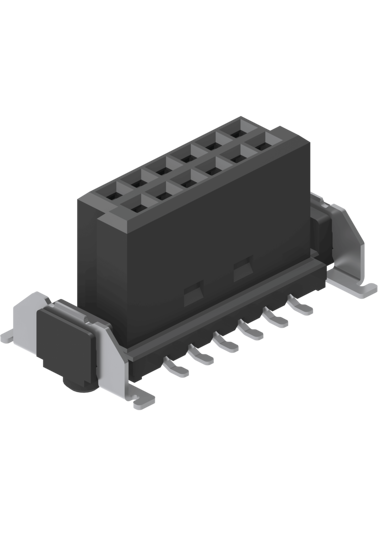

Female straight

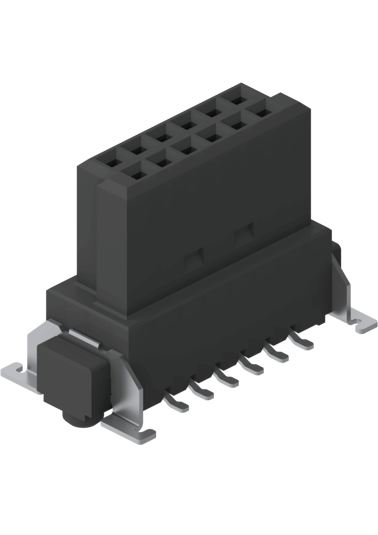

One27 Female mid-profile Part No. 404-53012-51

One27 Federleiste gerade H9 05 Foto
12 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53016-51

One27 Federleiste gerade H9 05 Foto
16 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53020-51

One27 Federleiste gerade H9 05 Foto
20 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53026-51

One27 Federleiste gerade H9 05 Foto
26 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53032-51

One27 Federleiste gerade H9 05 Foto
32 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53040-51

One27 Federleiste gerade H9 05 Foto
40 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53050-51

One27 Federleiste gerade H9 05 Foto
50 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53068-51

One27 Federleiste gerade H9 05 Foto
68 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female mid-profile Part No. 404-53080-51

One27 Federleiste gerade H9 05 Foto
80 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female mid-profile Part No. 404-53080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52012-51

One27 Federleiste gerade H6 25 Foto
12 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52016-51

One27 Federleiste gerade H6 25 Foto
16 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52020-51

One27 Federleiste gerade H6 25 Foto
20 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52026-51

One27 Federleiste gerade H6 25 Foto
26 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52032-51

One27 Federleiste gerade H6 25 Foto
32 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52040-51

One27 Federleiste gerade H6 25 Foto
40 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52050-51

One27 Federleiste gerade H6 25 Foto
50 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52068-51

One27 Federleiste gerade H6 25 Foto
68 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female low-profile Part No. 404-52080-51

One27 Federleiste gerade H6 25 Foto
80 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 404-52080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 11.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Male straight

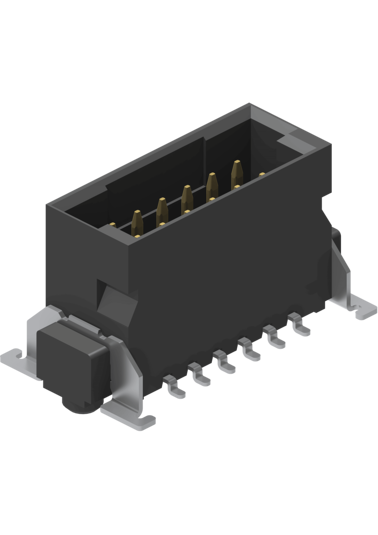

One27 Male mid-profile Part No. 403-53012-51

One27 Messerleiste gerade H3 25 Foto
12 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53016-51

One27 Messerleiste gerade H3 25 Foto
16 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53020-51

One27 Messerleiste gerade H3 25 Foto
20 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53026-51

One27 Messerleiste gerade H3 25 Foto
26 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53032-51

One27 Messerleiste gerade H3 25 Foto
32 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53040-51

One27 Messerleiste gerade H3 25 Foto
40 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53050-51

One27 Messerleiste gerade H3 25 Foto
50 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53068-51

One27 Messerleiste gerade H3 25 Foto
68 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male mid-profile Part No. 403-53080-51

One27 Messerleiste gerade H3 25 Foto
80 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 13.8 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 403-53080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 13.8 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52012-51

One27 Messerleiste gerade H1 75 Foto
12 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52016-51

One27 Messerleiste gerade H1 75 Foto
16 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52020-51

One27 Messerleiste gerade H1 75 Foto
20 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52026-51

One27 Messerleiste gerade H1 75 Foto
26 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52032-51

One27 Messerleiste gerade H1 75 Foto
32 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52040-51

One27 Messerleiste gerade H1 75 Foto
40 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52050-51

One27 Messerleiste gerade H1 75 Foto
50 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52068-51

One27 Messerleiste gerade H1 75 Foto
68 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male low-profile Part No. 403-52080-51

One27 Messerleiste gerade H1 75 Foto
80 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 12.3 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 403-52080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.3 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Female angled

One27 Female angled Part No. 404-51012-51

One27 Federleiste right angle Foto
12 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51016-51

One27 Federleiste right angle Foto
16 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51020-51

One27 Federleiste right angle Foto
20 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51026-51

One27 Federleiste right angle Foto
26 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51032-51

One27 Federleiste right angle Foto
32 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51040-51

One27 Federleiste right angle Foto
40 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51050-51

One27 Federleiste right angle Foto
50 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51068-51

One27 Federleiste right angle Foto
68 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female angled Part No. 404-51080-51

One27 Federleiste right angle Foto
80 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Male angled

One27 Male angled Part No. 403-51016-51

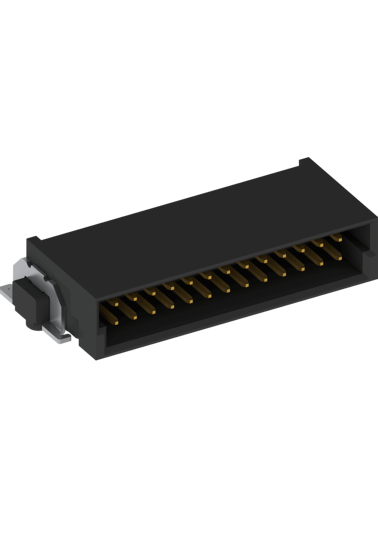

One27 Messerleiste right angle Foto
16 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51020-51

One27 Messerleiste right angle Foto
20 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51026-51

One27 Messerleiste right angle Foto
26 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51032-51

One27 Messerleiste right angle Foto
32 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51040-51

One27 Messerleiste right angle Foto
40 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51050-51

One27 Messerleiste right angle Foto
50 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51068-51

One27 Messerleiste right angle Foto
68 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51080-51

One27 Messerleiste right angle Foto
80 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Male angled Part No. 403-51012-51

One27 Messerleiste right angle Foto
12 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Female IDC

One27 Female IDC Part No. 404-59012-61

One27 Federleiste IDC Neu Foto
12 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59012-61 - Technical data

Basics

No. of Contacts12
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59016-61

One27 Federleiste IDC Neu Foto
16 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59016-61 - Technical data

Basics

No. of Contacts16
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59020-61

One27 Federleiste IDC Neu Foto
20 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59020-61 - Technical data

Basics

No. of Contacts20
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59026-61

One27 Federleiste IDC Neu Foto
26 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59026-61 - Technical data

Basics

No. of Contacts26
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59032-61

One27 Federleiste IDC Neu Foto
32 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59032-61 - Technical data

Basics

No. of Contacts32
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59040-61

One27 Federleiste IDC Neu Foto
40 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59040-61 - Technical data

Basics

No. of Contacts40
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59050-61

One27 Federleiste IDC Neu Foto
50 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59050-61 - Technical data

Basics

No. of Contacts50
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59068-61

One27 Federleiste IDC Neu Foto
68 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59068-61 - Technical data

Basics

No. of Contacts68
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 Female IDC Part No. 404-59080-61

One27 Federleiste IDC Neu Foto
80 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59080-61 - Technical data

Basics

No. of Contacts80
Termination TechnologyIDC
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
One27 cable assembly standard

One27 cable assembly 12 pins 100 mm version 120 Part No. 404-6112-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
12 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 12 pins 100 mm version 120 Part No. 404-6112-100-120-1 - Technical data

Basics

No. of Contacts12
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 16 pins 100 mm version 120 Part No. 404-6116-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
16 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 16 pins 100 mm version 120 Part No. 404-6116-100-120-1 - Technical data

Basics

No. of Contacts16
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 20 pins 100 mm version 120 Part No. 404-6120-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
20 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 20 pins 100 mm version 120 Part No. 404-6120-100-120-1 - Technical data

Basics

No. of Contacts20
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 26 pins 100 mm version 120 Part No. 404-6126-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
26 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 26 pins 100 mm version 120 Part No. 404-6126-100-120-1 - Technical data

Basics

No. of Contacts26
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 32 pins 100 mm version 120 Part No. 404-6132-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
32 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 32 pins 100 mm version 120 Part No. 404-6132-100-120-1 - Technical data

Basics

No. of Contacts32
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 40 pins 100 mm version 120 Part No. 404-6140-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
40 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 40 pins 100 mm version 120 Part No. 404-6140-100-120-1 - Technical data

Basics

No. of Contacts40
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 50 pins 100 mm version 120 Part No. 404-6150-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
50 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 50 pins 100 mm version 120 Part No. 404-6150-100-120-1 - Technical data

Basics

No. of Contacts50
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 68 pins 100 mm version 120 Part No. 404-6168-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
68 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 68 pins 100 mm version 120 Part No. 404-6168-100-120-1 - Technical data

Basics

No. of Contacts68
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly 80 pins 100 mm version 120 Part No. 404-6180-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
80 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 80 pins 100 mm version 120 Part No. 404-6180-100-120-1 - Technical data

Basics

No. of Contacts80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
One27 cable assembly customization

One27 cable assembly version 100 Part No. 404-61NN-LLL-100-1

One27 Kabelkonfektion Konfektionsvariante 100 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 100 Part No. 404-61NN-LLL-100-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 120 Part No. 404-61NN-LLL-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 120 Part No. 404-61NN-LLL-120-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 130 Part No. 404-61NN-LLL-130-1

One27 Kabelkonfektion Konfektionsvariante 130 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 130 Part No. 404-61NN-LLL-130-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 400 Part No. 404-61NN-LLL-400-1

One27 Kabelkonfektion Konfektionsvariante 400 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 400 Part No. 404-61NN-LLL-400-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 420 Part No. 404-61NN-LLL-420-1

One27 Kabelkonfektion Konfektionsvariante 420 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 420 Part No. 404-61NN-LLL-420-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 110 Part No. 404-61NN-LLL-110-1

ept One27 Kabelkonfektion 110
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 110 Part No. 404-61NN-LLL-110-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 140 Part No. 404-61NN-LLL-140-1

ept One27 Kabelkonfektion 140
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 140 Part No. 404-61NN-LLL-140-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

One27 cable assembly version 440 Part No. 404-61NN-LLL-440-1

ept One27 Kabelkonfektion 440
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 440 Part No. 404-61NN-LLL-440-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologyIDC
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

Video: Highlights of the One27 SMT Connectors

What are One27 connectors from ept capable of doing? What options are available for PCB connection and which termination technologies are possible? Why are One27 connectors particularly robust and easy to handle?

Watch this animated video to find out the answers to these questions and more. Watch it now on Youtube!

Features of the 1.27 mm SMT Connectors for Board-to-board Applications

The One27® range offers a high level of flexibility and at the same time reliable connectors for a number of board-to-board applications. The product family is based on a pitch of 1.27 mm, offers both straight and angled types as well as connections with ribbon cable, and is available in pin counts from 12 to 80 pins. The connectors are compatible with currently available products and their performance in tests has been excellent.
One27 male connector

detail overview

anti-twist safeguard

for correct connection of male and female connector

insertion chamfer

for compensation of misalignment and angular inclination

boardlock

absorbs mechanical stress and ensures a reliable connection to the PCB

positioning pins

optimal processing through precise positioning

coplanarity

soldering under controlled process conditions

solder meniscus

guarantees a robust surface mount connection

One27 female connector

detail overview

dual beam contact

for secure and reliable contact mating

smooth surface

secure contact mating on the rolled, homogenous surface

wipe length

reliability through high tolerance compensation

Implement Flexible Board-to-board Distances Conveniently

Board-to-board distances from 8 mm up to 13.8 mm can be achieved using One27 connectors from ept.
The male and female connectors can be inserted anywhere within a range of 1.5 mm, thanks to the absolutely secure mating of the One27 connectors. You can combine different heights to create minimal or even greater PCB distances.
ept One27 Mittenversatz
Center offset of One27 connectors
Permissible offset tolerances

One27 SMT connectors provide an offset tolerance of 0.7 mm along both the longitudinal and the transversal axis.
ept One27 Winkelversatz
Angular offset of One27 connectors
Permissible angular offset tolerances

When being inserted into the male connector, the tolerance for the female connector is up to 4° longitudinally and 2° transversally with One27 PCB connectors.
Test reports prove the compatibility with other connectors available on the market
Tape & Reel packaging for automatic assembly
IDC connector available without ribbon cable for individual cable lengths

One27 SMT PCB Connections with a Pitch of 1.27 mm

Produktmanager ept Anwendungen One27
"A product family of connectors offering the widest range of connection types and plug versions possible, while keeping the pitch as small as possible with the ultimate in robustness? We were up to the challenge!

Our One27 SMT PCB connectors with a pitch of 1.27 mm are capable of doing just that, and much more: They are ideally suited for use in a number of mezzanine, board-to-board, and board-to-cable applications in SMT, while featuring robustness and easy processing. What’s more, they are compatible with 1.27 mm SMT connectors already on the market – a verified fact. There are three different types available to choose from, whether for male or female connection, and they all offer absolutely secure mating, meaning that you can implement nearly every board-to-board distance ranging from 8 mm to 13.8 mm in any PCB arrangement. In addition, we offer the female One27 IDC both individually and as a customized cable assembly. This way, there is something for every application. For optimal handling of the SMT PCB connectors, we guarantee that the deviation from coplanarity is only 0.1 mm, while offering an amazing capture range of ±0.7 mm and ±4° (longitudinal) and ±2° (transversal). Why not try our range of One27 connectors yourself? You can request a free sample today!"

Erika Rohrmoser, Product Manager at ept GmbH

FAQ: Questions and Answers Regarding One27 1.27 mm SMT Connectors

How can circuit boards be connected to one another using One27 SMT connectors?What PCB distances are possible using One27 connectors?Why is the connection between the male and female connectors for the One27 connectors particularly reliable?Are One27 SMT PCB connectors from ept compatible with other connectors available on the market?What applications are suited for using One27 PCB connectors?What currents are possible using One27 connectors?What are the offset tolerances for One27 PCB connectors when being plugged?Is the female One27 IDC also available without ribbon cable?
Does ept also offer the female One27 IDC with cable?How can One27 SMT PCB connectors be processed?Is it possible to use automatic optical inspection (AOI) for the soldering of the One27 SMT connectors on the PCBs?Are the One27 connectors also shipped in tape-and-reel packaging?Are One27 PCB connectors UL-recognized components?Are the ept PCB connectors RoHS compliant?
How can circuit boards be connected to one another using One27 SMT connectors?

The different types included in the product family of One27 connectors make it possible to connect PCBs in parallel, horizontally, or perpendicularly and to connect ribbon cables to the circuit board.

What PCB distances are possible using One27 connectors?

It is possible to implement board-to-board distances ranging from 8 mm to 13.8 mm using One27 PCB connectors, with a secure mating tolerance of 1.5 mm. This means that male and female connectors can be separated by up to 1.5 mm and we still guarantee an optimal, reliable contact. Furthermore, the heights of the low-profile One27 and the mid-profile One27 can be combined with one another in four ways, enabling you to implement different PCB distances.

One27 Ueberstecksicherheit.png
Why is the connection between the male and female connectors for the One27 connectors particularly reliable?

The connection produced by One27 connectors is established by means of a double-sided female contact that envelops the contact pin of the male connector. Even if the connection is offset, the contact on one side of the contact pin at the very least is still reliable. Moreover, the connector is plugged on the smooth, rolled surface of the female contact. Wear and tear of the contact surfaces and shavings become a thing of the past when using the One27 connectors.

One27 Federkontakt.png
Are One27 SMT PCB connectors from ept compatible with other connectors available on the market?

The One27 connector system is fully compatible with the connectors from other manufacturers. The compatibility of the One27 connectors has been confirmed in test reports, which you can request by e-mailing us at sales@ept.de.

What applications are suited for using One27 PCB connectors?

One27 SMT connectors are suited for all applications in which PCBs require a robust connection with minimal space availability. Your options for arranging the PCBs and selecting the connection types remain very flexible thanks to the different orientations, heights, and termination technologies available with the One27 connectors. It remains entirely in your hands whether you need to stack the PCBs in parallel with varying distances, horizontally next to one another, at a right angle, or by ribbon cable.

What currents are possible using One27 connectors?

A 50-pin One27 connector carries up to 1.4 A at 20°C ambient temperature. Request more detailed information and test reports by emailing us at sales@ept.de.

What are the offset tolerances for One27 PCB connectors when being plugged?

One27 connectors feature high offset tolerances. The permissible center offset tolerance when connecting a male to a female is 0.7 mm along both the longitudinal and the transversal axis. The tolerance for angular inclination is 4° longitudinally and 2° transversally.

Is the female One27 IDC also available without ribbon cable?

Yes. ept also offers the female IDC from the One27 product family without cables, which means you can assemble the cable yourself and determine your specific cable length. Refer to the Installation Instructions for more information.
ept also offers customized cable assembly of the female One27 IDC to suit your every need.

Does ept also offer the female One27 IDC with cable?

Yes. ept offers the female One27 IDC based on insulation displacement technology with cable assembly. You can determine the orientation of connectors, number of contacts, and cable length. What’s more, you can choose between three different cable types.

How can One27 SMT PCB connectors be processed?

The One27 connector system is processed using surface-mount technology (SMT) – in other words, it is soldered directly onto the circuit boards. The connectors are shipped in tape-and-reel packaging, allowing for fully automatic pick-and-place processing. There are positioning pins on the underside of the One27 connectors, which guarantee exact positioning on the circuit board. Further, ept guarantees that the deviation from coplanarity is only 0.1 mm (max.) to ensure proper soldering when processing.

Is it possible to use automatic optical inspection (AOI) for the soldering of the One27 SMT connectors on the PCBs?

Yes. The One27 connectors’ contact design has been optimized for automatic optical inspection following soldering. The contacts of the angled One27 PCB connectors are arranged so that it is possible to perform an automatic optical inspection from one side.

Are the One27 connectors also shipped in tape-and-reel packaging?

Yes, One27 SMT connectors are shipped in tape-and-reel packaging, allowing for fully automatic pick-and-place processing. Other packaging types are available from ept on request. The female One27 IDC is normally shipped in tray packaging.

Are One27 PCB connectors UL-recognized components?

Yes, One27 connectors from ept are UL-recognized components in the U.S. and in Canada.

Are the ept PCB connectors RoHS compliant?

RoHS (Restriction of Hazardous Substances) is a directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
We confirm that One27 connectors from ept are RoHS certified and compliant with the RoHS directive (2011/65/EU). You can find more detailed information at RoHS & REACH.

Testimonials on the One27 SMT PCB Connectors

Out of respect for our customers’ wish for discretion, we do not list the sources of the following quotes. However, we guarantee the full authenticity of these testimonials.

For us, the short shipping times offered for the One27 PCB connectors were critical in our decision to opt for the required connectors with a pitch of 1.27 mm from ept.

Purchaser for hardware development

We were able to keep the circuit board layout we had been using when we implemented the One27 connectors. It made it easy to switch to the SMT connectors from ept, and we didn’t need to make changes to design.

Development engineer for hardware development

Thanks to the offset connections on the angled One27 sockets, we no longer needed to worry about installing a second camera to inspect soldering quality.

Production manager for contract manufacturing

We are now able to procure the female IDC with a pitch of 1.27 mm individually, and without cable assembly.

Head of purchasing for automation technology

The soldering test for the One27 SMT connectors from ept provided the proof I needed of their excellent processing. I had never before looked at connectors in the selection process like that!

Head of development for assembly manufacturing

I had never before seen clear proof of how well connectors can be soldered to the board. The soldering test for the One27 PCB connectors really opened my eyes to the product. You can actually see how sturdy the soldered connection of the contacts on the circuit board is.

Purchaser for embedded computing

It was very helpful for us to be able to procure female IDC with a pitch of 1.27 mm individually, and with such a large selection of pin counts, as well.

Development engineer for hardware development

We would love to visit your facility and its beautiful location but from the quality assurance point of view we can’t find a reason to.

Purchaser for hardware development
